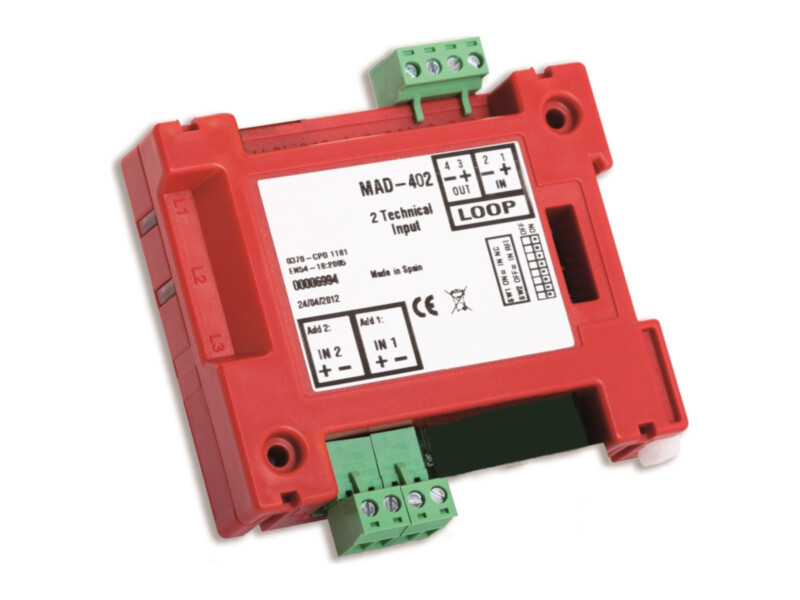

Detnov MAD-402-I input module | addressable | 2 inputs | with isolator | EN 54-18 / EN 54-17

The MAD-402-I is a Detnov MAD-400 series addressable input module with 2 supervised technical inputs for monitoring equipment with an NC or NO contact (e.g. door position); the input type is set with a micro-switch. for Detnov addressable control panels. It takes 2 loop addresses; the address is set with the PGD-300 programmer. Built-in short-circuit isolator; observe polarity when wiring, the address can also be set by the panel's auto-addressing. Powered directly from the loop. LED status indicator. Mounting on a DIN rail or on the wall in a BOX-ONE box (up to 6 modules in a BOX-SIX); removable terminal blocks for wires up to 2.5 mm². Red; certified to EN 54-18 / EN 54-17 (0370-CPR-1863).

Key features

• 2 inputs, NC/NO (micro-switch)
• Built-in isolator
• 2 loop address(es)
• Loop powered
• EN 54-18 / EN 54-17
