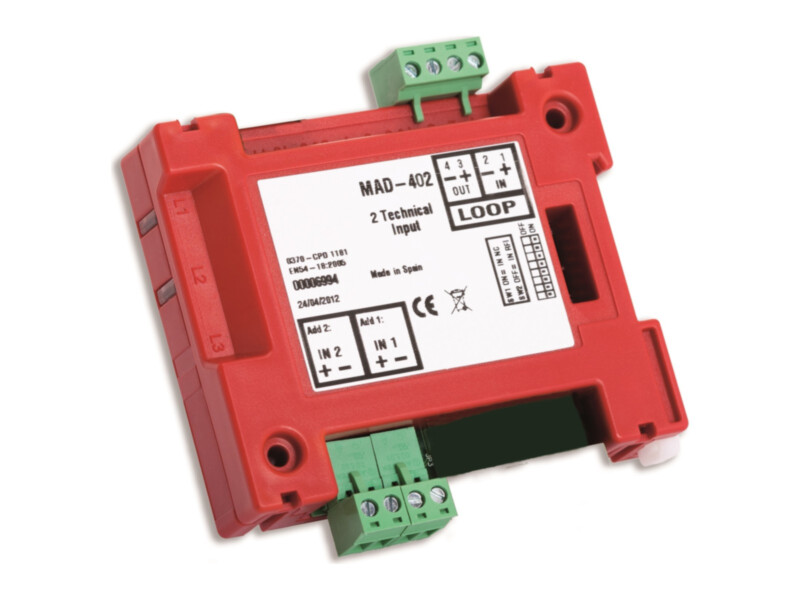

Detnov MAD-402 input module | addressable | 2 inputs | EN 54-18

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€65.10 €81

Pre-order

SKU

MAD-402

Product files

Datasheet

Product details

Product parameters
Manufacturer	Detnov

Toote kirjeldus

The MAD-402 is a Detnov MAD-400 series addressable input module with 2 supervised technical inputs for monitoring equipment with an NC or NO contact (e.g. door position); the input type is set with a micro-switch. for Detnov addressable control panels. It takes 2 loop addresses; the address is set with the PGD-300 programmer. Wired to the loop without polarity. Powered directly from the loop. LED status indicator. Mounting on a DIN rail or on the wall in a BOX-ONE box (up to 6 modules in a BOX-SIX); removable terminal blocks for wires up to 2.5 mm². Red; certified to EN 54-18 (0370-CPR-1181).

Key features

2 inputs, NC/NO (micro-switch)
Non-polarised wiring
2 loop address(es)
Loop powered
EN 54-18

Technical data

Type	addressable input module with 2 supervised technical inputs for monitoring equipment with an NC or NO contact (e.g. door position); the input type is set with a micro-switch.
Input	2 inputs, supervised, NC/NO
Addresses	2
Supply voltage	22 … 38 V DC
Standby current	< 300 µA
Alarm current	< 3 mA
Wiring	2 × 1.5 mm² twisted shielded cable
Operating temperature	-10 … +70 °C
Humidity	95 % (non-condensing)
Protection	IP40
Dimensions	100 × 82 × 23 mm
Material	ABS
Mounting	DIN rail or BOX-ONE / BOX-SIX box
Approval	EN 54-18, 0370-CPR-1181
