Ajax DoorProtect Plus white EU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€70.85 €88

In stock 1

SKU

38101.13.WH1

Product files

Datasheet

Toote kirjeldus

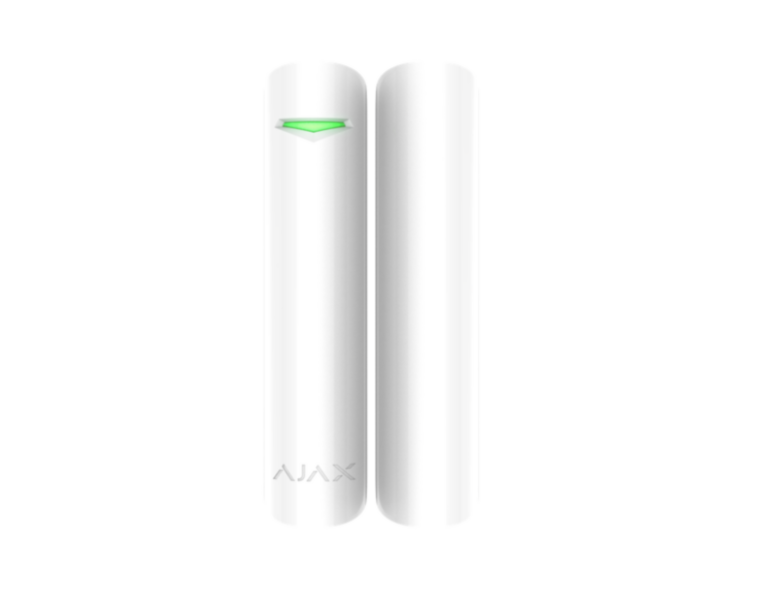

Ajax DoorProtect Plus Jeweller is a wireless opening detector that notices an intrusion before the door or window is opened. A reed switch senses opening while an accelerometer senses shock and tilt — so the detector alarms when glass is smashed, a door is prised or a window is tilted into the vent position.

Shock sensitivity has three levels and single shocks can be ignored if wanted, so a chance knock does not raise a false alarm. The tilt threshold can be set between 5 and 25 degrees, which suits ordinary windows as well as garage doors.

A wired detector with an NC contact can be connected to the terminals. Tamper protection reports opening or removal of the enclosure, device authentication protects against spoofing, and the Jeweller radio link is encrypted and frequency-hopping. The pre-installed CR123A battery lasts for years.

Features

Three sensors: reed switch, accelerometer (shock) and tilt sensor
Three shock sensitivity levels, single shocks can be ignored
Tilt threshold selectable from 5° to 25°
Input for a wired third-party detector (NC contact)
Tamper protection and device authentication
Pre-installed CR123A battery
Encrypted Jeweller radio with frequency hopping

Technical data

Communication protocol	Jeweller
Radio frequency band	866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz* / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region. / * Certified according to UL/ULC standards.
Radio communication range	up to 1200 m
Power supply	1 x CR123A
Protection against spoofing	Yes
Ingress protection rating	IP50
Operating temperature range	from −10 °C up to +40 °C
Operating humidity	up to 75%
Dimensions (L × W × H)	Ø 20 × 90 mm
Weight	29 g
Warranty	24 months
