Ajax MotionProtect Curtain white EU (indoor)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€94.46 €117

In stock 8

SKU

38195.36.WH1

Product files

Datasheet

Product details

Product parameters
Length	134
Width	44
Height	34

Toote kirjeldus

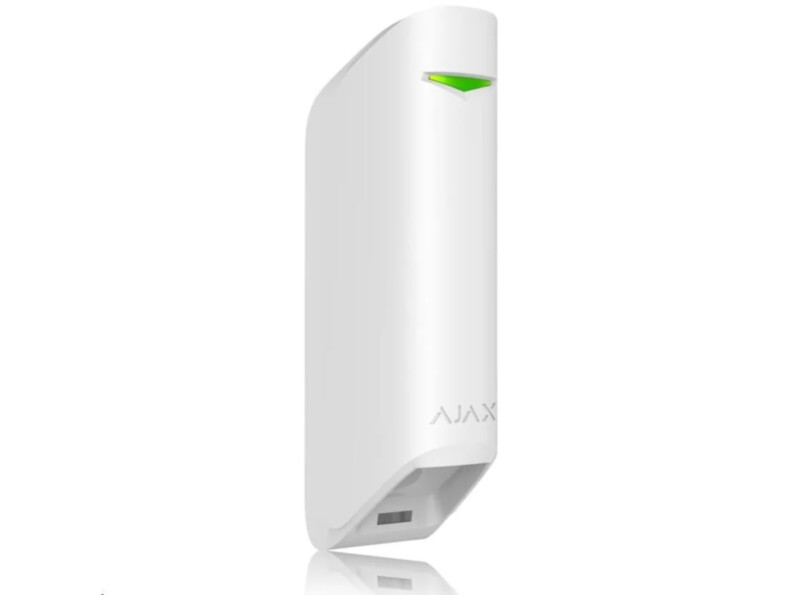

Ajax MotionProtect Curtain Jeweller is a wireless motion detector with a narrow, tall zone: 6° horizontally and 90° vertically. It is mounted beside a window, a balcony door or a display case and notices an intruder already at the opening — movement deeper inside the room does not raise an alarm.

Two infrared sensors together with Correlation Signal Processing detect movement at 6–15 m. Sensitivity has three levels, and temperature compensation keeps detection reliable from −10 °C to +40 °C.

False alarms caused by pets can be avoided by mounting the detector upside down. Tamper protection reports opening of the enclosure or removal from the mounting panel, and the Jeweller radio link is encrypted and frequency-hopping.

Features

Narrow zone: 6° horizontal, 90° vertical
Two PIR sensors with Correlation Signal Processing
Detection range 6–15 m
Three sensitivity levels, set from the app
Temperature compensation from −10 °C to +40 °C
Pet immunity by mounting the detector upside down
Tamper protection and encrypted Jeweller communication

Technical data

Sensing element	2 × PIR sensor
Motion detection range	up to 6–15 m
Communication protocol	Jeweller
Radio frequency band	866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / * / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region. / * Certified according to UL/ULC standards.
Radio communication range	up to 1700 m
Radio communication encryption	Yes
Power supply	CR123A
Battery life	up to 3 years
Tamper alarm	Yes
Protection against spoofing	Yes
Ingress protection rating	IP54
Operating temperature range	from –10 °C up to +40 °C
Operating humidity	up to 75%
Dimensions (L × W × H)	5.28″ × 1.73″ × 1.34″ / with bracket / 5.28″ × 2.05″ × 1.61″
Weight	118 g
Warranty	24 months
