Ajax MotionProtect Outdoor white EU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€275.52 €342

In stock 8

SKU

38197.33.WH1

Product files

Datasheet

Product details

Product parameters
Length	183
Width	70
Height	65

Toote kirjeldus

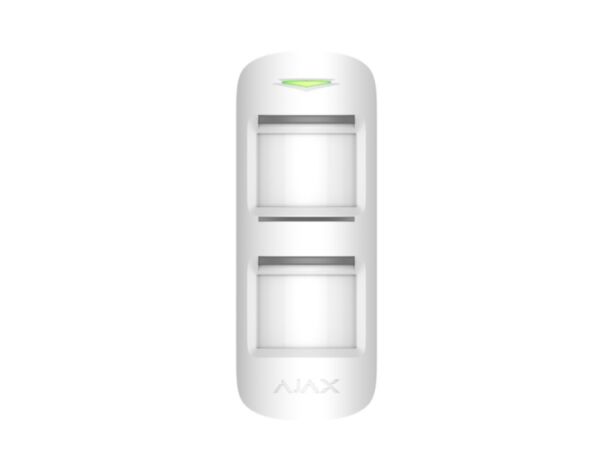

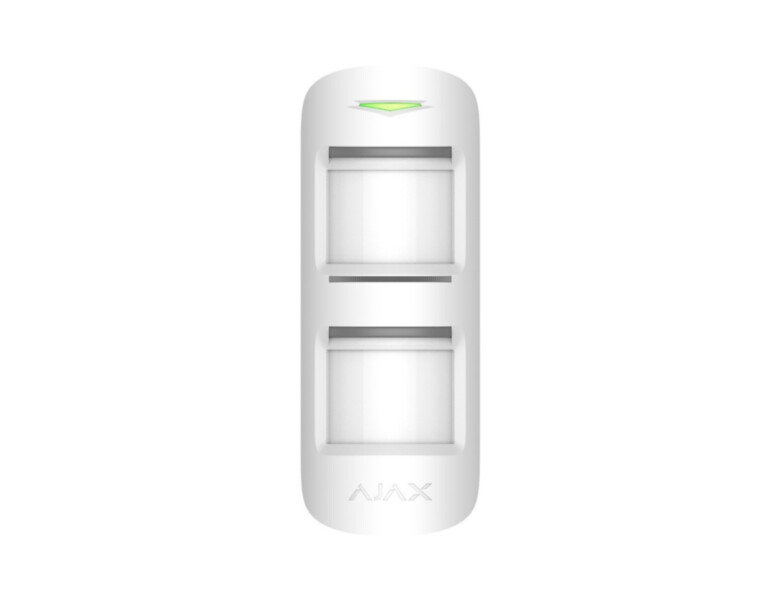

Ajax MotionProtect Outdoor Jeweller is a wireless motion detector for outdoor use. Two infrared sensors cover a 90-degree field of view and detect movement at 3–15 m; the detection range is adjusted with a slider on the enclosure itself.

Outdoors the risk of false alarms is higher than indoors, so the detector uses two algorithms: LISA analyses the signals of both sensors together and SmartDetect tells human movement from everything else. Branches, cats or a passing car therefore do not raise an alarm. Temperature compensation keeps detection reliable from −25 °C to +60 °C.

The anti-masking system reports any attempt to cover or tape over the detector's view, and tamper protection reports opening of the enclosure or removal from the wall. The two pre-installed CR123A batteries last for years, and the Jeweller radio link is encrypted and frequency-hopping.

Features

Two PIR sensors, 90° field of view, detection at 3–15 m
Detection range adjusted with a slider on the enclosure
LISA and SmartDetect algorithms to prevent false alarms
Anti-masking system
Temperature compensation from −25 °C to +60 °C
Tamper protection and device authentication
Two pre-installed CR123A batteries
Encrypted Jeweller radio with frequency hopping

Technical data

Sensing element	2 × PIR sensor
Communication protocol	Jeweller
Radio frequency band	866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz* / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region. / * Certified according to UL/ULC standards.
Radio communication range	up to 1700 m
Radio communication encryption	Yes
Power supply	2 × CR123A
Battery life	up to 5 years
Tamper alarm	Yes
Protection against spoofing	Yes
Ingress protection rating	IP55
Operating temperature range	from -25 °C up to +60 °C
Operating humidity	up to 95%
Dimensions (L × W × H)	183 × 70 × 65 mm
Weight	322 g
Warranty	24 months
