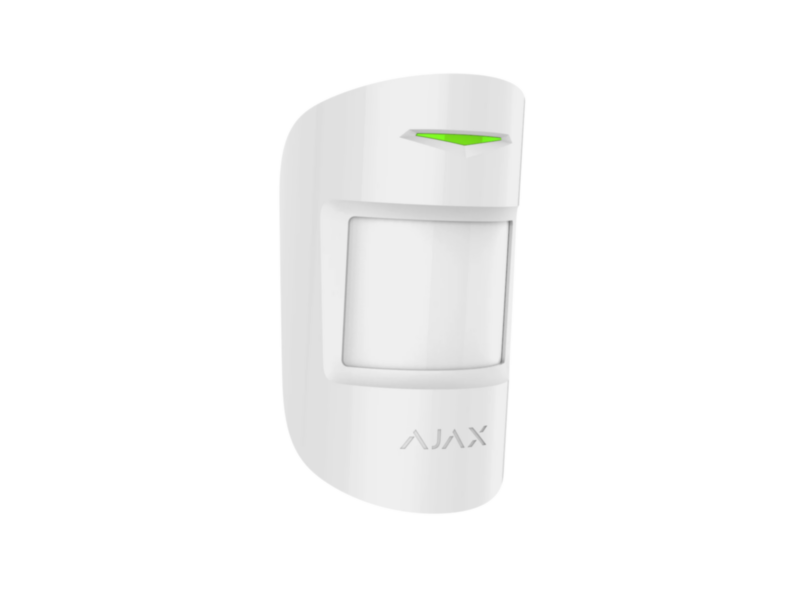

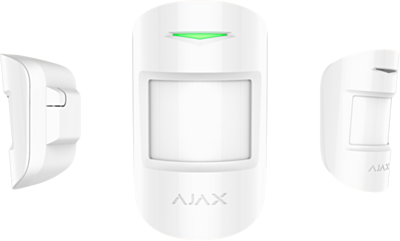

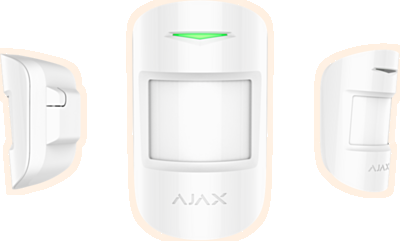

Ajax MotionProtect white EU
€78.69
€98
In stock 44
SKU
38193.09.WH1
Product files
Product details
| Length | 110 |
|---|---|
| Width | 65 |
| Height | 50 |
Toote kirjeldus
Ajax MotionProtect Jeweller is a wireless infrared (PIR) motion detector and the core element of an Ajax security system. It detects movement at a distance of up to 12 m within an 88.5° horizontal field of view and reports alarms to the hub over Jeweller radio at a range of up to 1,700 m.
The SmartDetect algorithm separates human movement from heat and other interference, keeping false alarms to a minimum. Temperature compensation keeps detection reliable in both cold and warm rooms, while pet immunity allows animals of up to 20 kg and 50 cm in height to move freely.
The SmartBracket mounting panel makes installation tool-free, and the detector is configured and tested remotely from the Ajax app. The pre-installed CR123A battery lasts up to 5 years.
Features
- Motion detection range up to 12 m, 88.5° horizontal field of view
- SmartDetect algorithm to prevent false alarms
- Pet immunity for animals up to 20 kg and 50 cm tall
- Temperature compensation for accurate detection in cold and heat
- Jeweller radio up to 1,700 m, encrypted and frequency-hopping
- Tamper protection against opening and removal
- Pre-installed CR123A battery lasts up to 5 years
- Tool-free installation with the SmartBracket mounting panel
- Configuration and testing from the Ajax app
Technical data
| Sensing element | PIR sensor |
|---|---|
| Motion detection range | up to 12 m |
| Communication protocol | Jeweller |
| Radio frequency band | 866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz* / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region. / * Certified according to UL/ULC standards. |
| Radio communication range | up to 1700 m |
| Radio communication encryption | Yes |
| Power supply | 1 × CR123A |
| Tamper alarm | Yes |
| Protection against spoofing | Yes |
| Ingress protection rating | IP50 |
| Operating temperature range | from -10 °C up to +40 °C |
| Operating humidity | up to 75% |
| Dimensions (L × W × H) | 110 × 65 × 50 mm |
| Weight | 86 g |
| Warranty | 24 months |
