Ajax Relay EU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€55.08 €68

In stock 27

SKU

38204.19.NC1

Product files

Datasheet

Toote kirjeldus

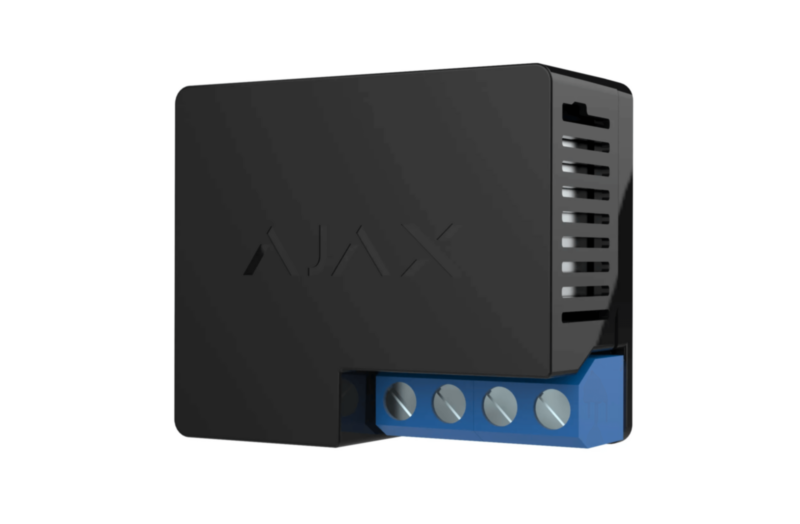

Ajax Relay Jeweller is a small wireless relay with a dry contact that is installed into the wiring and lets the Ajax app control electrical equipment: lighting, heating, a gate, a pump or any other device.

The relay works in pulse or bistable mode, so the same device can give a short command (a gate operator pulse, for example) or keep a circuit permanently on or off. Automation scenarios link the relay to other devices: switching on lighting on alarm, closing a valve when a leak detector triggers, or running heating to a schedule.

Protection works in both directions: the relay monitors overheating (above 65 °C at the installation site or above 85 °C inside the relay) as well as overcurrent, and switches off when there is a risk. It communicates with the hub over Jeweller radio at a range of up to 1,000 m, encrypted and frequency-hopping.

Features

Dry contact for controlling electrical equipment
Pulse or bistable operating mode
Automation scenarios: alarm, schedule, detector events
Temperature protection (above 65 °C at the site, 85 °C inside)
Current protection against overload
Jeweller radio up to 1,000 m, encrypted and frequency-hopping

Technical data

Communication protocol	Jeweller
Radio frequency band	866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region.
Radio communication range	up to 1000 m
Radio communication encryption	Yes
Average power consumption	up to 1 W
Protection against spoofing	Yes
Ingress protection rating	IP20
Operating temperature range	from / −10 °C up to +64 °C
Operating humidity	up to 75%
Weight	25 g
Warranty	24 months
