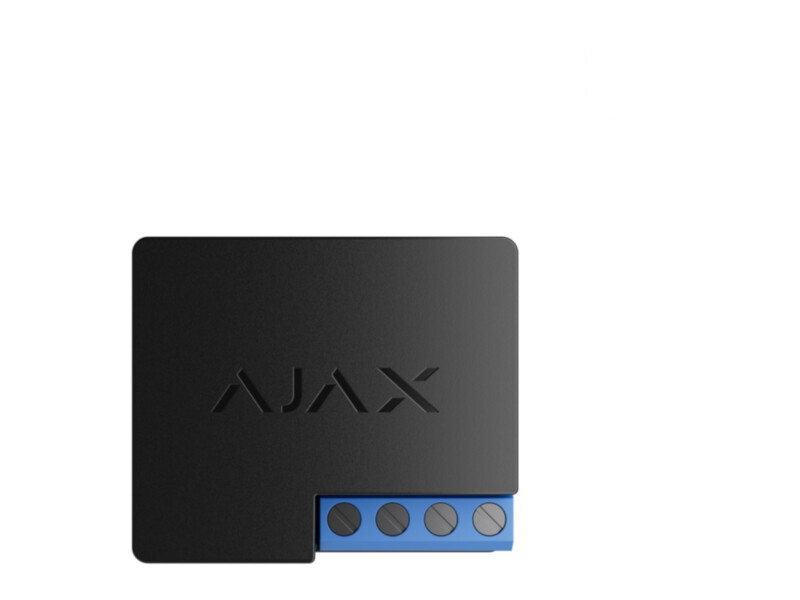

Ajax WallSwitch black EU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€55.08 €68

In stock 4

SKU

38189.13.BL1

Product files

Datasheet

Toote kirjeldus

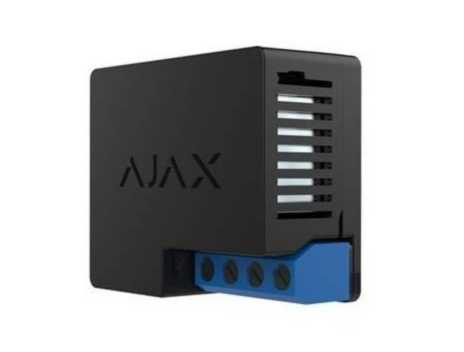

Ajax WallSwitch is a wireless relay that switches 110–230 V AC devices with up to 13 A and a 3 kW load. It is installed behind an existing switch or socket and lets the Ajax app control lighting, heating, a pump or other electrical equipment.

The relay protects the connected device itself: overcurrent protection switches off above 11 A (with protection enabled) or above 13 A, voltage protection reacts when a 230 V supply drops below 184 V or rises above 253 V, and temperature protection switches the device off when it heats above 65 °C.

Automation scenarios link the relay to other Ajax devices: lighting can be switched on by an alarm, heating by schedule, or a device switched off when a leak detector triggers. The electric shock protection class is II, and communication with the hub is encrypted and frequency-hopping.

Features

Switches 110–230 V devices up to 13 A and 3 kW
Installed behind a switch or a socket
Overcurrent protection (above 11 A / 13 A)
Voltage protection 184–253 V on a 230 V supply
Temperature protection above 65 °C
Automation scenarios: alarm, schedule, detector events
Electric shock protection class II
Encrypted Jeweller communication with frequency hopping

Technical data

Communication protocol	Jeweller
Radio frequency band	866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region.
Radio communication range	up to 1000 m
Radio communication encryption	Yes
Power supply voltage	110–230 V ± 10%, 50/60 Hz
Average power consumption	up to 1 W
Protection against spoofing	Yes
Ingress protection rating	Class II
Operating temperature range	from / 0 °C up to +64 °C
Operating humidity	up to 75% with no condensation
Weight	30 g
Warranty	24 months
