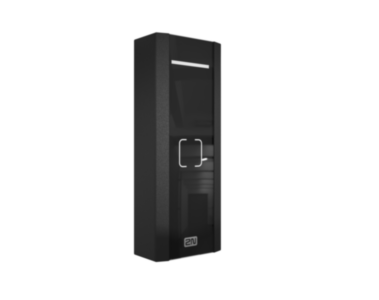

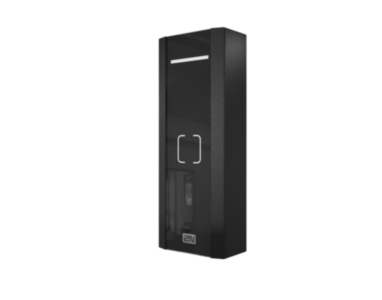

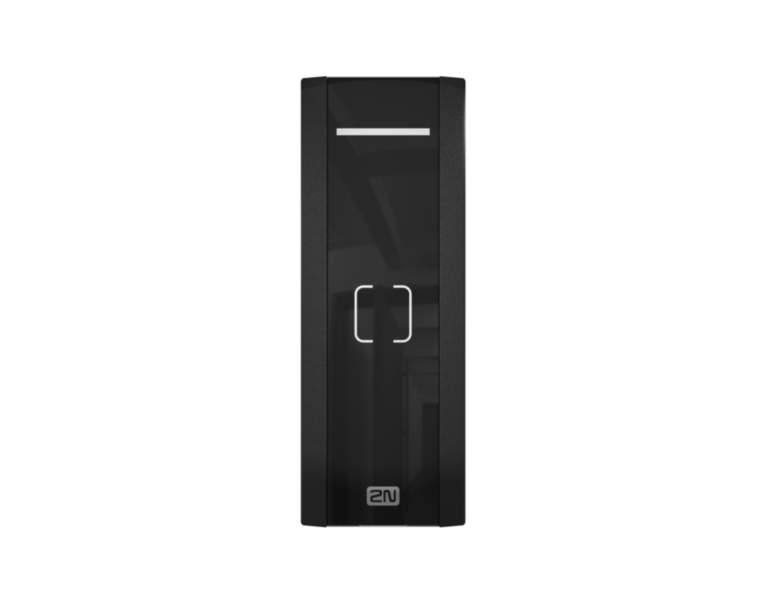

2N Access Unit M 125kHz, 13.56MHz, NFC

528,00 € 644 €
Ettetellitav
SKU
916114
Toote failid
Toote andmed
Toote parameetrid
Tootja 2N
Length 133
Width 50
Height 27
Toote kirjeldus

IP põhine kaardilugeja, mis sisaldab endas ka uksekontrollerit.

Liidesed
Power supply:PoE and/or 12 V/1 A DC
PoE:802.3af (Class 0–12.95 W)
LAN:10/100BASE-TX with Auto-MDIX, RJ-45 female (pigtail)
Recommended cabling:Cat-5e or better
Active switch output:8 to 12 V DC/max 600 mA
Passive switch:NO/NC contacts, up to 30 V/1 A AC/DC
Inputs:2 inputs - in passive/active mode (-30 V to +30 V DC)
 OFF = open or Uin> 1.5 V
 ON = short-circuit or Uin< 1.5 V
Tamper switch:native part of the 2N Access Unit M
Audio:buzzer, 1 W/8ohm
Supported protocols:DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog
RFID Card Reader
Supported frequencies:13.56 MHz variant
 125 kHz and 13.56 MHz variant
125 kHz:EM4100, EM4102
13.56 MHz:ISO14443A, ISO14443B, NFC support
 reads UID (CSN)

Mechanical Properties
Cover:tempered glass with durable plastic
Operating temperature:-40°C to +60°C
Storage temperature:-40°C to +70°C
Operating relative humidity:10%-95% (non-condensing)
Dimensions (surface mounted):50 (W) x 133 (H) x 27 (D) mm
Weight:max 0.5 kg
Cover rating:IP55 and IK07
