Alarmtech MC 270-S45-2x2,2K G3 pinnapealne magnetkontakt 6m 2k2 + 2k2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

62,50 € 76 €

Ettetellitav

SKU

MC_270-S45-2x2,2K

Toote failid

Andmeleht

Toote andmed

Toote parameetrid
Tootja	Alarmtech
IP kaitseaste	IP67
Turvakategooria	Grade 3
Sobib terasustele	Koos lisadega
Paigaldusviis	Pinnapealne

Toote kirjeldus

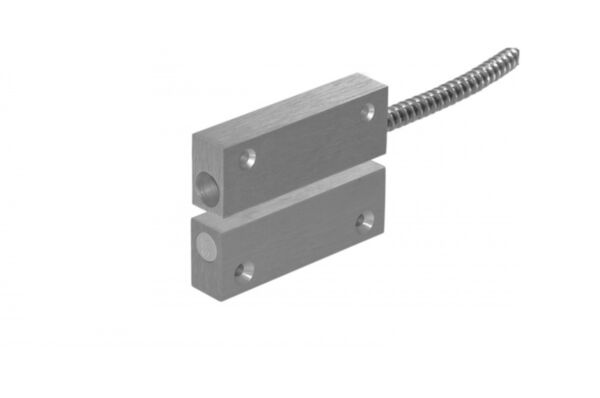

The MC 270-S45 set is intended for use in exposed environments where a more durable high security contact is needed, such as doors, gates, etc. The set consists of a contact part with NC contact function installed in MC 200-4 Al housing and an extra strong magnet in MC 200-5 Al housing, which allows for a wide opening gap. MC 270-S45 set contains a 1 m long stainless steel Flexi-tube protection (MC T4). Contact and magnet are paired. To ensure proper functionality, do not replace the contact or magnet alone.

Data sheet

Installation method: Surface mount
Contact function: Normally Closed (NC)
Approvals: EN 50131-2-6 Grade 3, Class IIIA, VdS G 116028 Class C, SBSC 9-205, Class 3/4, F&P, NBÚ CZ Typ 3, NBÚ SK Typ 3
Contact rating: 48 VDC / 500 mA / 10 VA
Magnet type: Alnico 5
Mounting on steel: Only with accessories
Make distance (wood) mm: 34
Sabotage distance (wood) mm: 20
Make distance (steel) mm: X
Tamper protection: Yes
Connection: Cable
Housing material: Aluminium
Operating temperature range: -40°C – +70°C
Housing protection class: IP 67
Contact dimensions (L x W x H) mm: 74 x 25 x 15
Magnet dimensions (L x W x H) mm: 74 x 25 x 15
Normal operation: 12 VDC
Grade: 3
