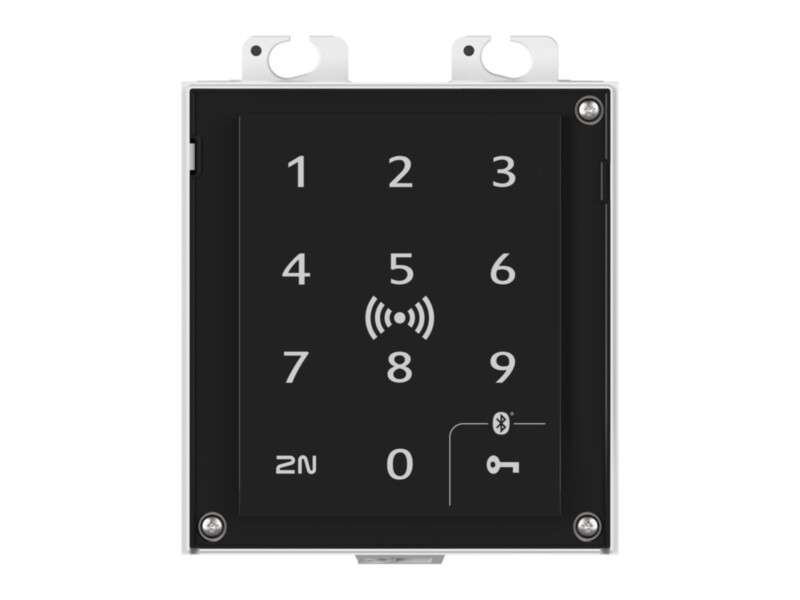

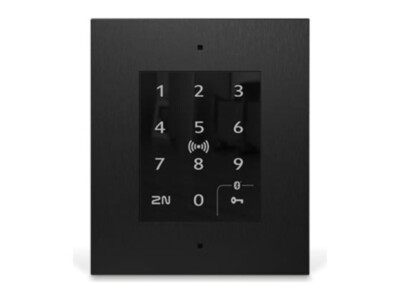

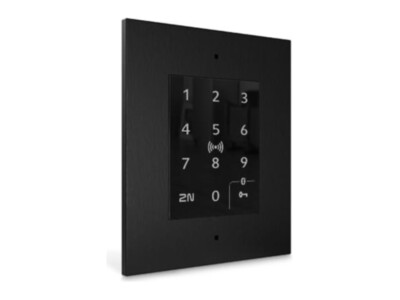

2N Access Unit 2.0 IP access reader, touch keypad, Bluetooth & RFID 125 kHz, 13.56 MHz + HID SE

The 2N Access Unit 2.0 is a smart IP access reader with the controller already built in – no separate controller or complicated wiring needed. It connects to the IP network with a single UTP cable, and the lock, exit button and door contact connect to it directly; installation takes about 4 minutes and the system can be administered remotely via a secure cloud. This version: touch keypad, Bluetooth and card reader that also reads HID SE (Seos, iClass SE, MIFARE SE) credentials. Three access technologies in one device: mobile access, a PIN code as backup (e.g. when the phone battery is flat) and RFID cards, which can be encrypted with 2N PICard technology. Flush-mounted, the reader protrudes only 5 mm; surface and glass installation are also possible. The frame (nickel or black) is ordered separately.

Key features

• Touch keypad, Bluetooth and card reader that also reads HID SE (Seos, iClass SE, MIFARE SE) credentials
• Built-in controller, single UTP cable
• PoE 802.3af or 12 V DC
• Relay and active lock output, 2 inputs
• Built-in tamper switch
• IP54, IK08, −40…+60 °C

Technical data
