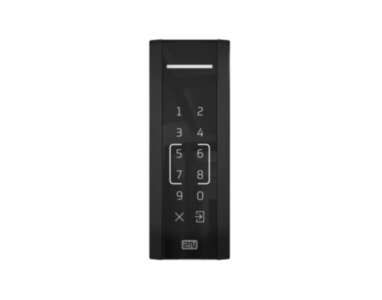

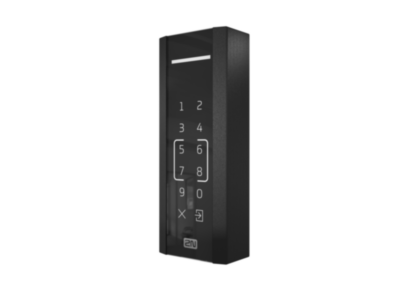

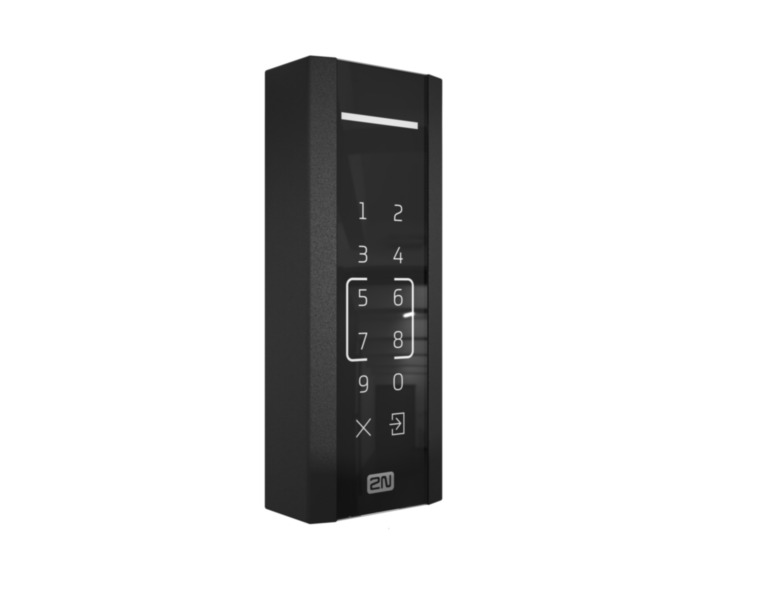

2N Access Unit M IP access reader, touch keypad & RFID 125 kHz, 13.56 MHz, NFC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€620.00 €769

Pre-order

SKU

916116

Product files

Datasheet

Product details

Product parameters
Manufacturer	2N
Length	133
Width	50
Height	27

Toote kirjeldus

The 2N Access Unit M is a slim, easy-to-install IP access reader, ideal for offices and tight spots such as door frames. The controller is built in and works even without a server; a single UTP cable is all you need for connection and power. IP55 allows outdoor installation, and the glass front panel stays scratch-free after years of use. This version: touch keypad and 125 kHz / 13.56 MHz card reader – the door opens with a PIN code or an RFID card, or both can be required together. For wall mounting there are a flush box (916121) and a surface box (916122).

Key features

Touch keypad (PIN)
RFID 125 kHz and 13.56 MHz, NFC
Built-in controller, works without a server
Connection and power via one UTP cable (PoE)
IP55, fits door frames

Technical data

Power supply	PoE and/or 12 V/1 A DC
PoE	802.3af (Class 0–12.95 W)
LAN	10/100 BASE-TX Auto-MDIX, RJ-45 male (2,9m pigtail)
Recommended cabling	Cat-5e or better
Active switch output	8 to 12V, DC, max 600mA
Passive switch	NO/NC relay, 30V, 1A, AC, DC
Inputs	2 inputs – in passive / active mode(-30 VDC to + 30 VDC), OFF = open or Uin> 1.5V / ON = short-circuit or Uin< 1.5V
Tamper switch	inbuilt
Material	tempered glass with rugged plastic
Operating temperature	-40 to 60°C
Storage temperature	-40 to 70°C
Humidity	10 to 95% (non-condensing)
Weight	500g
Protection rating	IK07, IP55
Dimensions	50 × 133 × 27 mm
