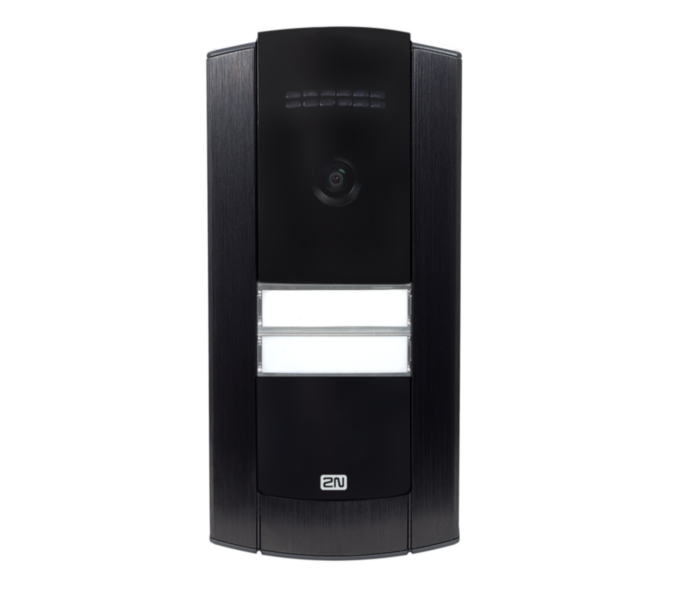

2N IP Base IP video intercom, HD camera, 1–2 buttons, black frame

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€682.00 €846

In stock 1

SKU

9156111CB

Product files

Datasheet

Product details

Product parameters
Manufacturer	2N

Toote kirjeldus

The 2N IP Base is a compact, quick-to-install IP video intercom designed especially for single-family homes and smaller projects. The HD camera and sound processing provide clear images, echo cancellation and motion detection. The door strike connects directly to the intercom, so you can open the door remotely for a visitor or for yourself with the My2N app. Buttons for both the one- and two-button option are included. Durable aluminium frame; 2N 5-year warranty.

Key features

HD camera 1280 × 960, 135° view
1 or 2 buttons (both included)
Door opening with the My2N app
PoE 802.3af or 12 V DC
IP65, IK07
Operating temperature −40…+55 °C

Technical data

Number of buttons	1 or 2 (the pack holds plastic buttons for both 1 or 2-button options)
Microphone	built-in microphone
Speaker	2W/8 Ω
Sound pressure	78dB
Audio codecs	G.711, G.722, G.729
Camera resolution	1280 × 960px
Viewing angle	135° (H), 109° (V)
IR illumination (night vision)	no
Video codecs	H.263, H.263+, H.264 only for VoIP calls, MJPEG for http streaming
PoE	PoE 802.3af LAN connector
Active switch output	8 to 12V, PoE: 10V - adapter: source voltage minus 2V, max 400mA
Tamper switch	yes, inbuilt
Power supply	12V, 2A, DC
Inputs	1 input - in passive/active mode (-30 V to +30 V DC), OFF = open or Uin> 1.5V / ON = short-circuit or Uin< 1.5V
Weight	1kg
Operating temperature	-40 to 55°C
Storage temperature	-40 to 70°C
Humidity	10 to 95% (non-condensing)
Protection rating	IP65, IK07
Dimensions	229 × 109 × 31mm
