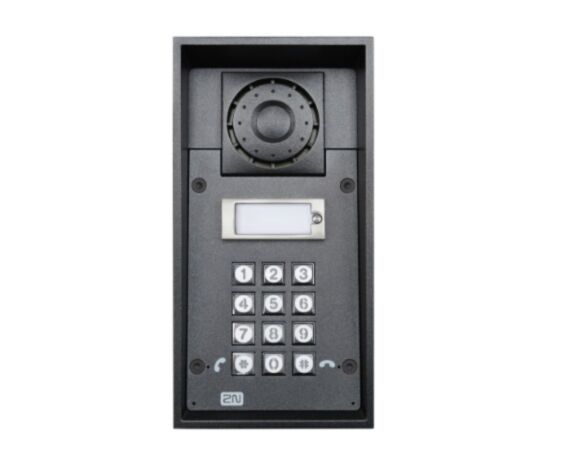

2N IP Force IP intercom, 1 button, keypad, 10 W speaker

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,293.40 €1,604

Pre-order

SKU

9151101KW

Product files

Datasheet

Product details

Product parameters
Manufacturer	2N

Toote kirjeldus

The 2N IP Force is an extremely durable IP intercom that withstands even the most demanding conditions – IP69K and IK10. It provides visitor communication, entrance monitoring and access control. This version has no camera. The keypad is used for calling and opening the door with a code. The 10 W speaker and two microphones give clear speech even in noisy places; security relay, tamper switch and picture-to-email are available.

Key features

1 button, no camera
IP69K, IK10
10 W speaker, 2 microphones
PoE 802.3af or 12 V DC
Operating temperature −40…+55 °C
Keypad

Technical data

Number of buttons	1, 2 or 4
Microphone	2 built-in microphones
Speaker	10W
Sound pressure	94dB
Audio codecs	G.711, G.729, G.722, L16/16kHz
Power supply	12V ± 15% / 2A DC, or PoE
PoE	PoE 802.3af (Class 0 - 12.95W)
LAN	10/100BASE-TX with Auto-MDIX function
Passive switch	NC/NO contacts, 30V
Active switch output	9 to 13V DC depending on Power supply (PoE: 9V; adapter: source voltage minus 1V), max 700mA
Tamper switch	optional accessory
Weight	2kg
Humidity	(non-condensing) 10 - 95%
Operating temperature	-40 to 55°C
Storage temperature	-40 to 70°C
Protection rating	IP69K, IK10
Dimensions	217 × 109 × 83mm
