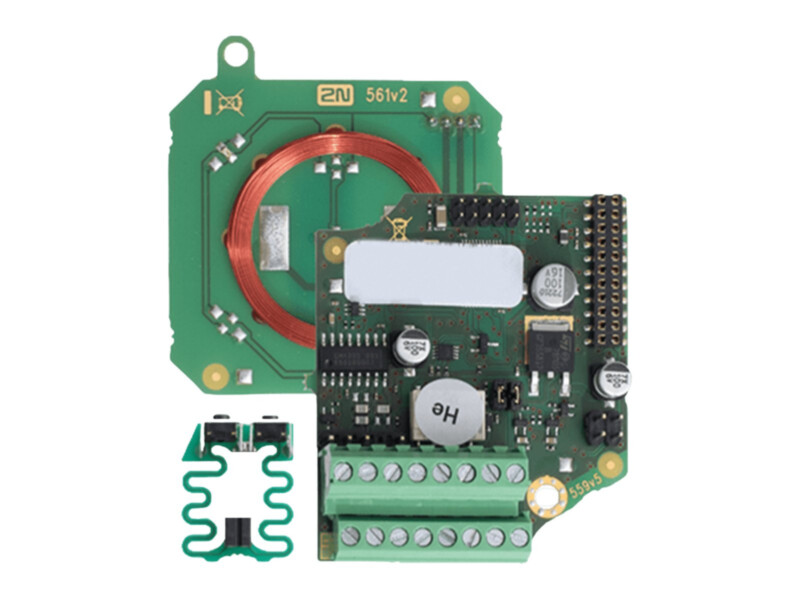

2N IP Force 2.0 card reader module, 125 kHz + 13.56 MHz, OSDP

The internal RFID card reader module is installed inside the 2N IP Force 2.0 intercom and reads both 125 kHz and 13.56 MHz cards. It adds two relays, two logical inputs and a OSDP interface for third-party access control systems. OSDP encrypts the data and is more secure than Wiegand. A tamper switch signals when the front panel is opened. According to 2n.com it fits the two-button and pictogram models (9151301CRP, 9151302CR).

Key features

• 125 kHz and 13.56 MHz cards
• OSDP interface
• 2 relays (NO, max 30 V / 1 A), 2 inputs
• Active output up to 400 mA
• Front panel tamper switch

Technical data
