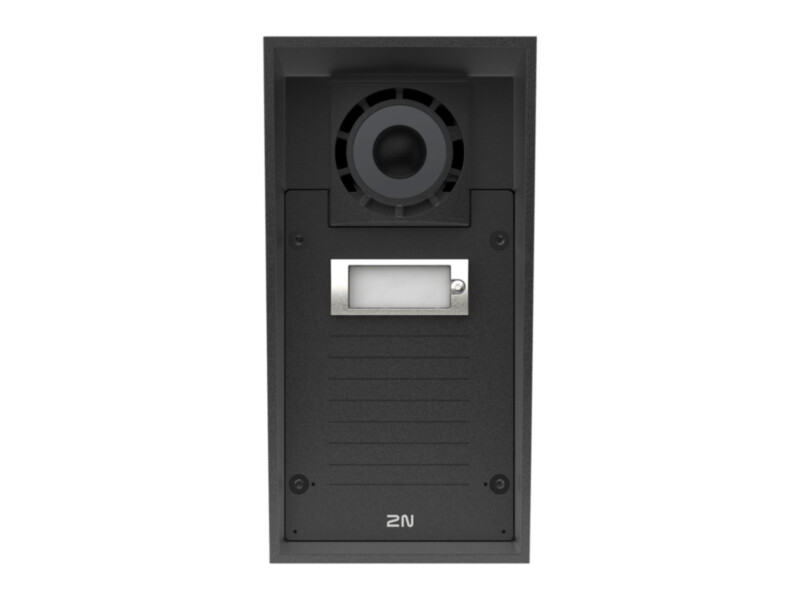

2N IP Force 2.0 IP intercom, 1 button, audio only, 10 W speaker

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,342.12 €1,664

In stock 2

SKU

9151301

Product files

Datasheet

Toote kirjeldus

The 2N IP Force 2.0 is designed for demanding environments where maximum security and robust access control are essential. This is the audio-only version with one call button. The robust aluminium body (IP69, body IK10), noise cancellation, a high-volume speaker and adaptive volume ensure clear speech even in noisy places. The Axis ARTPEC-8 processor provides secure boot, signed firmware and a secure key store. 2N IP Verso 2.0 modules (e.g. a Bluetooth reader) connect via the VBus connector; a security relay and an induction loop are available.

Key features

1 call button, audio only
IP69, IK10 (body)
10 W speaker, 2 microphones, noise cancellation
PoE+ 802.3at or 12 V DC
Gigabit LAN, 3 inputs
VBus: 2N IP Verso 2.0 modules

Technical data

Power supply	12 V / 4 A DC or PoE+
PoE	IEEE 802.3at
LAN	10/100/1000BASE-TX with Auto-MDIX, RJ-45
Recommended cabling	CAT6 with MPTL
Active switch output	12 V / 0.6 A DC
Passive switch	SSR NO up to 30 V / 1A AC/DC
Inputs	3; in passive/active mode (-30 V to +30 V DC)
Tamper switch	Mechanical (additional module)
Microphone	2 integrated
Amplifier	10 W / 4 Ω
Speaker	10 W / 4 Ω
Sound pressure	94 dB (for 1 kHz at 1 m)
Full duplex	Yes (AEC)
Audio codecs	G.711, G.729, G.722, L16/16kHz
Technology	mechanical keypad
Material	aluminium (ADC12) with chromating Surtec 650
Humidity	10 to 95% (non-condensing)
Weight	2000g
Protection rating	IP69, IK10 body (EN 62262:2019), IK08 camera, front panel (EN 62262:2019)
Dimensions	109 × 217 × 83 mm
Dimensions, flush mounted	135 × 244 × 12 mm
