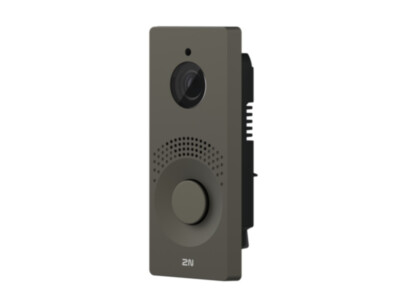

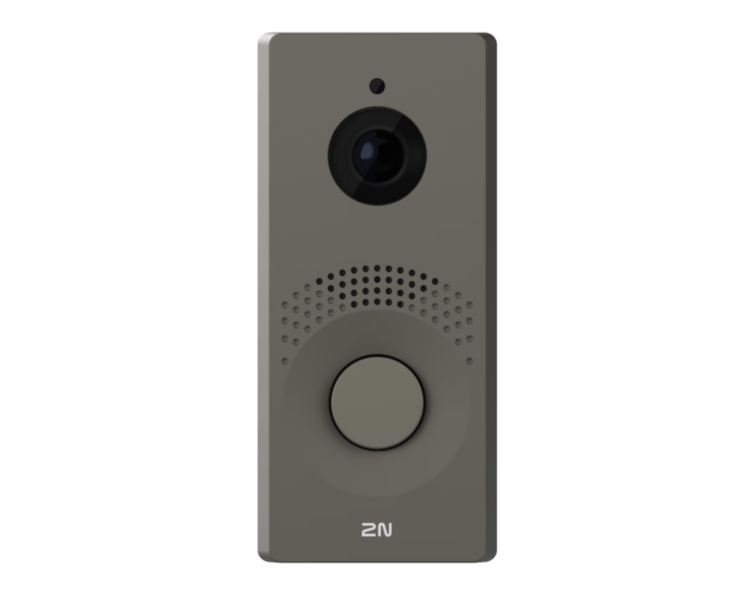

2N IP One IP video intercom, 1 button, Full HD camera, bronze

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,195.36 €1,482

Pre-order

SKU

9158105

Product files

Datasheet

Product details

Product parameters
Manufacturer	2N

Toote kirjeldus

The 2N IP One is a highly durable IP video intercom for family homes. The Axis ARTPEC-7 processor and a wide-angle Full HD camera with adaptive face zooming give constant, clear control of the front door. Unlike regular video doorbells, the door strike connects directly to the intercom: you can open the door remotely for a visitor, let them in with a QR code or open it yourself with the My2N app. If the camera detects motion or the microphone picks up noise, residents are notified at once. It connects to 2N indoor stations, the My2N app and leading home automation systems. Flush installation (box 9158001) or surface installation (box 9158002). Colour bronze.

Key features

Full HD camera, 156° view, WDR, IR
Adaptive face zooming
QR code and My2N app
PoE 802.3af or 12 V DC
IP66, IK08, −40…+60 °C
Aluminium casting, bronze

Technical data

Power supply	PoE and/or 12 V/1 A DC
PoE	802.3af (12.95 W max.)
LAN	10/100BASE-TX with Auto-MDIX, RJ-45 jack
Recommended cabling	Cat-5e or better
Active switch output	12 V DC/max 600 mA
Passive switch	NO contacts, 20V AC or 30V DC, 1A
Inputs	1 input - in passive/active mode (-30 V to +30 V DC) OFF = open or Uin> 1.5 V ON = short-circuit or Uin< 1.5 V
Tamper switch	yes
Microphone	1 integrated microphone
Amplifier	5 W RMS (Class D)
Speaker	integrated, 3W
Full duplex	Yes (AEC)
Audio codecs	G.711, G.729, G.722, L16/16 kHz
Camera sensor	1/2.7″ colour CMOS
Viewing angle	156° (H), 116° (V)
IR illumination (night vision)	yes
WDR	yes
Minimum illumination	0,3 lux without IR illumination
Video codecs	H.264, MJPEG, Zipstream
Camera resolution	max. 1920 × 1440 (4:3)
Dimensions	78 × 172 × 53 mm
Material	aluminium casting (three colors)
Humidity	10 to 95% (non-condensing)
Protection rating	IP66 and IK08
Weight	355g
