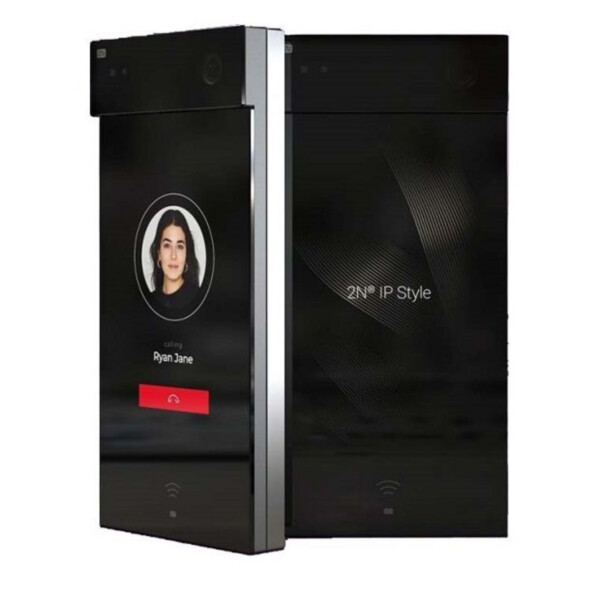

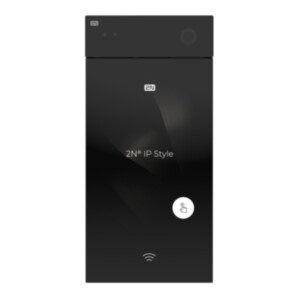

2N IP Style IP video intercom, 10" touch display, Full HD camera, supports secured cards (Seos)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€4,576.20 €5,674

In stock 2

SKU

9157101-S

Product files

Datasheet

Product details

Product parameters
Manufacturer	2N
Length	355
Width	170
Height	40

Toote kirjeldus

video intercom with a 10′′ touch display is designed to turn heads at any high-end residential or office entrance. Supercharged with the AXIS ARTPEC-7 processor, full-HD camera and WaveKey technology, 2N^® IP Style will define the future of intercoms for years ahead.

The 2N IP Style is an IP video intercom with a 10" touch display, powered by the AXIS ARTPEC-7 processor. Its Full HD camera (Forensic WDR, IR illumination, adaptive face zooming) and WaveKey Bluetooth technology make it 2N’s flagship. The display has a self-disinfecting coating that kills over 99 % of viruses and bacteria. Users can authenticate with a mobile phone, RFID card, PIN code or QR code, and this version also reads secured cards (HID Seos). The patented tilt-out installation system leaves both hands free for cabling. IP65 and IK08. For installation you need the flush box 9157001 or the surface box 9157002.

Key features

10.1" touch display, self-disinfecting coating
Camera 2560 × 1920, Forensic WDR, IR
Mobile (WaveKey), RFID, PIN, QR code, secured cards (Seos)
PoE+ 802.3at or 12 V DC
IP65, IK08
Installation: box 9157001 or 9157002

Technical data

Microphone	2 built-in microphones
Speaker	2 × 4W/4 Ω
Sound pressure	85dB
Full duplex	Yes (AEC)
Audio codecs	G.711, G.729, G.722, L16/16 kHz
Camera resolution	max 2560 × 1920 (4:3); max QHD (16:9)
Viewing angle	138° (H), 114° (V)
IR illumination (night vision)	yes
WDR	yes
Video codecs	H.264, H.265, MJPEG, Axis Zipstream
Power supply	12 ±15 %V, 4A
PoE	PoE+ IEEE 802.3at (Class 4–25.5 W)
LAN	10/100BASE-TX with Auto-MDIX, RJ-45
Passive switch	NC/NO contacts, 30V, 1A, DC, AC
Active switch output	12V, max 600mA
Inputs	3, (-30 V to +30 V)
Tamper switch	mechanical, part of the intercom
Material	hardened white glass
Operating temperature	-30 to 60°C
Storage temperature	-30 to 70°C
Humidity	(non-condensing) 10 - 95%
Weight	1950g
Protection rating	IP65, IK08
Dimensions	170 × 355 × 40 mm
Dimensions, flush mounted	170 × 355 × 22 mm
