| Manufacturer | 2N |
|---|

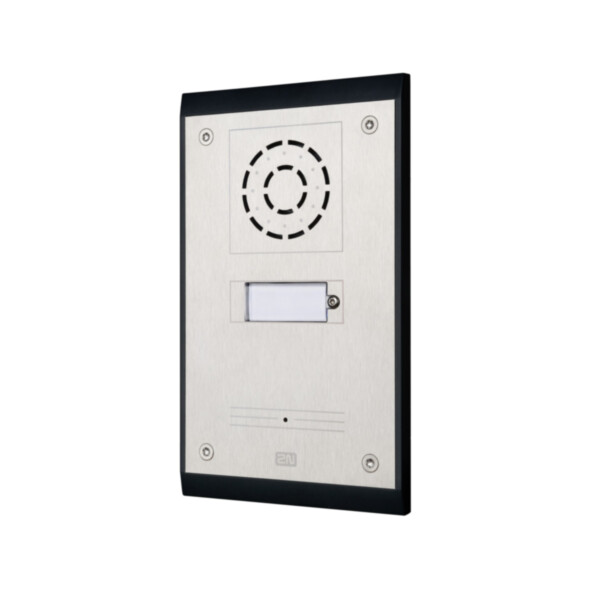

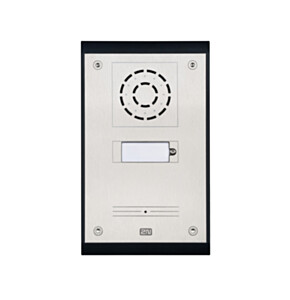

The 2N IP Uni is a simple IP intercom for general-purpose outdoor and indoor use. Easy operation and the IP interface make sure nobody gets lost on the premises – one press connects you, for example, with reception or security. Installation is simple and the 2N IP Uni can also replace an existing analogue intercom. Blue backlit buttons; thanks to SIP it links with IP phones and PBXs of other makers without a server.
| Number of buttons | 1 or 2 |
|---|---|
| Microphone | 1 built-in microphone |
| Speaker | 1W |
| Amplifier | 1 W (class D) |
| Full duplex | Yes (AEC) |
| Audio codecs | G.711 |
| Power supply | 12V ± 15% / 2A DC, or PoE |
| PoE | PoE 802.3af (Class 0 - 12.95W) |
| LAN | RJ-45, 10/100BASE-TX with Auto-MDIX |
| Passive switch | NC/NO contacts, 30V, 1A, AC, DC |
| Active switch output | 12V, max 500mA |
| Tamper switch | yes, inbuilt |
| Operating temperature | -40 to 55°C |
| Storage temperature | -40 to 70°C |
| Humidity | 10 to 95% (non-condensing) |
| Protection rating | IP54, IK10 |
| Material | ABS plastic, high-quality stainless steel |
| Dimensions | 193 × 115 × 39mm |
| Dimensions, flush mounted | 197 × 119 × 47mm |
| Weight | 500g |
