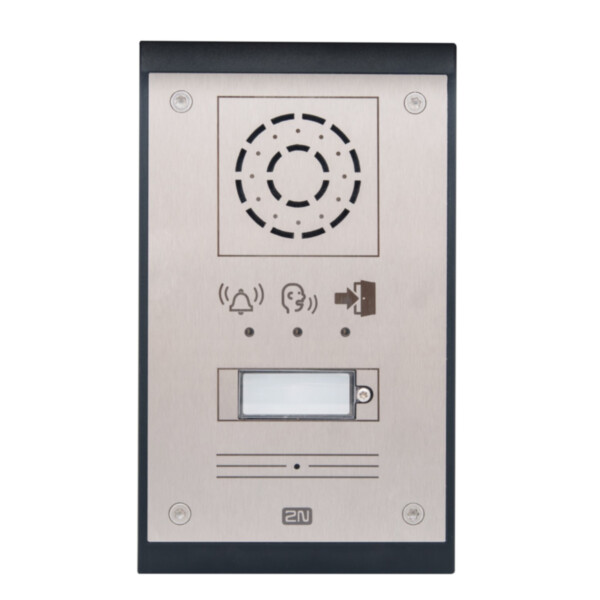

2N IP Uni IP intercom, 1 button, pictograms

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€620.00 €769

Pre-order

SKU

9153101P

Product files

Datasheet

Product details

Product parameters
Manufacturer	2N

Toote kirjeldus

The 2N IP Uni is a simple IP intercom for general-purpose outdoor and indoor use. Easy operation and the IP interface make sure nobody gets lost on the premises – one press connects you, for example, with reception or security. Installation is simple and the 2N IP Uni can also replace an existing analogue intercom. Three pictograms show the intercom status: ringing, call in progress and door opening. Blue backlit buttons; thanks to SIP it links with IP phones and PBXs of other makers without a server.

Key features

1 button, pictograms, blue backlight
IP54, IK10
PoE 802.3af or 12 V DC
Built-in tamper switch
Relay and active lock output
Operating temperature −40…+55 °C

Technical data

Number of buttons	1 or 2
Microphone	1 built-in microphone
Speaker	1W
Amplifier	1 W (class D)
Full duplex	Yes (AEC)
Audio codecs	G.711
Power supply	12V ± 15% / 2A DC, or PoE
PoE	PoE 802.3af (Class 0 - 12.95W)
LAN	RJ-45, 10/100BASE-TX with Auto-MDIX
Passive switch	NC/NO contacts, 30V, 1A, AC, DC
Active switch output	12V, max 500mA
Tamper switch	yes, inbuilt
Operating temperature	-40 to 55°C
Storage temperature	-40 to 70°C
Humidity	10 to 95% (non-condensing)
Protection rating	IP54, IK10
Material	ABS plastic, high-quality stainless steel
Dimensions	193 × 115 × 39mm
Dimensions, flush mounted	197 × 119 × 47mm
Weight	500g
