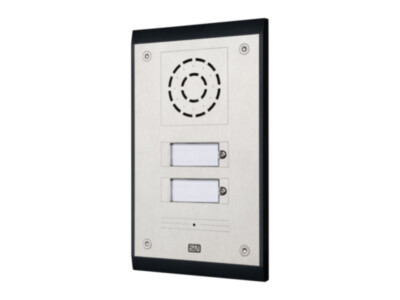

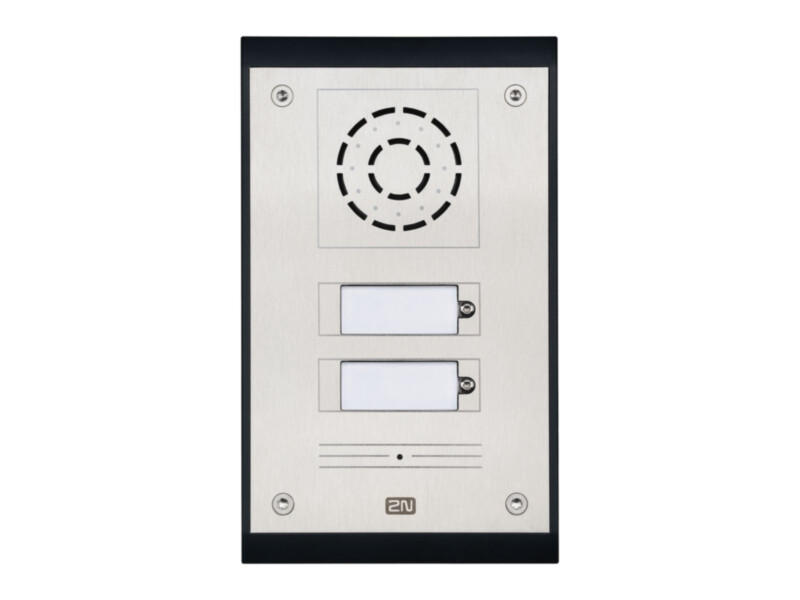

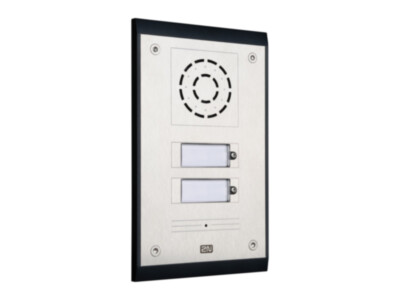

2N IP Uni IP intercom, 2 buttons

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€564.20 €700

Pre-order

SKU

9153102

Product files

Datasheet

Product details

Product parameters
Manufacturer	2N

Toote kirjeldus

The 2N IP Uni is a simple IP intercom for general-purpose outdoor and indoor use. Easy operation and the IP interface make sure nobody gets lost on the premises – one press connects you, for example, with reception or security. Installation is simple and the 2N IP Uni can also replace an existing analogue intercom. Blue backlit buttons; thanks to SIP it links with IP phones and PBXs of other makers without a server.

Key features

2 buttons, blue backlight
IP54, IK10
PoE 802.3af or 12 V DC
Built-in tamper switch
Relay and active lock output
Operating temperature −40…+55 °C

Technical data

Number of buttons	1 or 2
Microphone	1 built-in microphone
Speaker	1W
Amplifier	1 W (class D)
Full duplex	Yes (AEC)
Audio codecs	G.711
Power supply	12V ± 15% / 2A DC, or PoE
PoE	PoE 802.3af (Class 0 - 12.95W)
LAN	RJ-45, 10/100BASE-TX with Auto-MDIX
Passive switch	NC/NO contacts, 30V, 1A, AC, DC
Active switch output	12V, max 500mA
Tamper switch	yes, inbuilt
Operating temperature	-40 to 55°C
Storage temperature	-40 to 70°C
Humidity	10 to 95% (non-condensing)
Protection rating	IP54, IK10
Material	ABS plastic, high-quality stainless steel
Dimensions	193 × 115 × 39mm
Dimensions, flush mounted	197 × 119 × 47mm
Weight	500g
