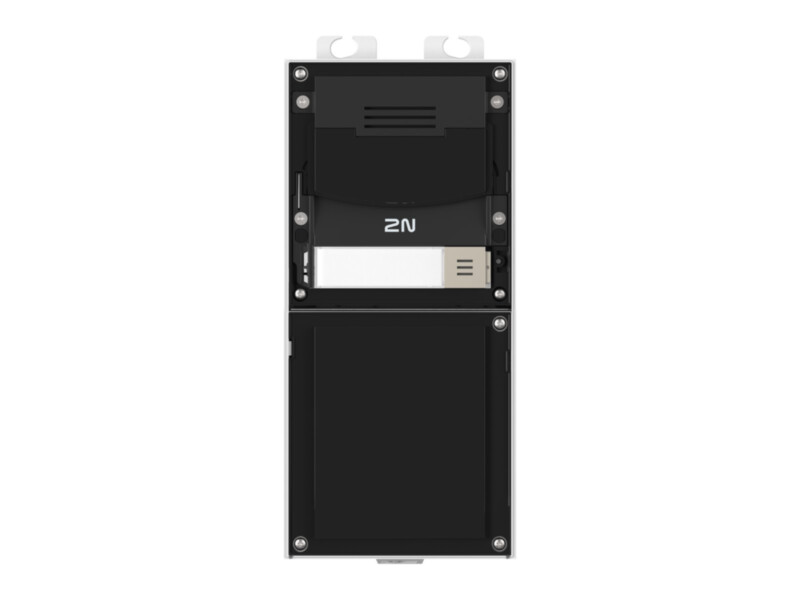

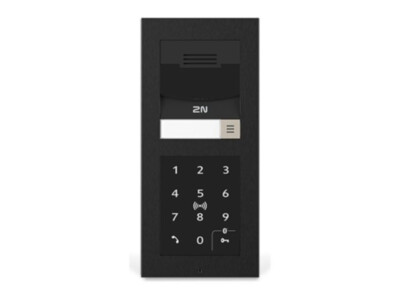

2N IP Verso 2.0 main unit, Full HD camera, black, 1 button

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,576.44 €1,955

In stock 1

SKU

9155211CB

Product files

Datasheet

Product details

Product parameters
Manufacturer	2N

Toote kirjeldus

The 2N IP Verso 2.0 is the second generation of the world’s best-selling IP intercom. Its wide-angle Full HD camera keeps colour even in low light, and WDR balances scenes with large differences between bright and dark areas, so a visitor against the light is no longer a black silhouette; the camera can also zoom in on faces automatically. The ARTPEC-7 processor enables advanced features such as QR code access. The system is modular (keypad, card readers, Bluetooth, fingerprint reader) and can be installed on the wall, flush or on glass. Colour black; the frame is ordered separately.

Key features

Wide-angle Full HD camera, WDR, IR illumination
Adaptive face zooming
QR code access (ARTPEC-7)
Modular: keypad, card readers, Bluetooth
PoE 802.3af or 12 V DC
IP54, IK08

Technical data

Power supply	PoE and/or 12 V/1 A DC
PoE	802.3af (Class 0–12.95 W)
LAN	10/100BASE-TX with Auto-MDIX, RJ-45 jack
Recommended cabling	Cat-5e or better
Passive switch	NO/NC contacts, 30V, 1A, AC, DC
Inputs	1 input - in passive/active mode (-30 V to +30 V DC), OFF = open or Uin> 1.5V / ON = short-circuit or Uin< 1.5V
Active switch output	8 to 12V, DC, max 400mA
Microphone	1 integrated microphone
Amplifier	(Class D) 5W
Speaker	2W/8 Ω
Sound pressure	78dB
Full duplex	Yes (AEC)
Audio codecs	G.711, G.729, G.722, L16/16 kHz
Camera sensor	1/2.7″ colour CMOS
Viewing angle	125° (H), 105° (V)
IR illumination (night vision)	yes
WDR	yes
Minimum illumination	0,8 lux without IR illumination
Video codecs	MJPEG, H.264, H.265, Zipstream
Camera resolution	1920 × 1440 (4:3), 1920 × 1080 (16:9)
Material	robust zinc cast frame with surface finish (nickel and black color)
Operating temperature	-40 to 60°C
Storage temperature	-40 to 70°C
Humidity	(non-condensing) 10 - 95%
Weight	2kg
Protection rating	IP54 and IK08
