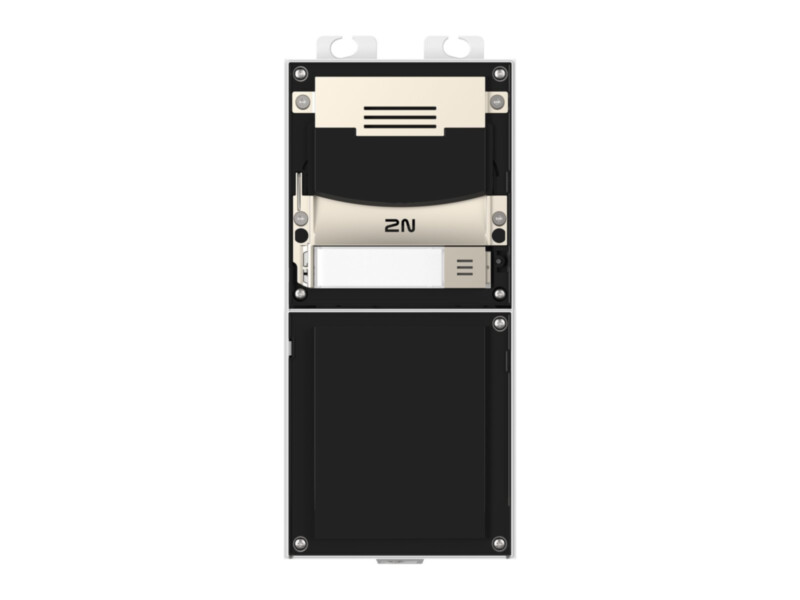

2N IP Verso 2.0 main unit, without camera, nickel, 1 button

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€770.24 €955

In stock 4

SKU

9155211

Product files

Datasheet

Product details

Product parameters
Manufacturer	2N

Toote kirjeldus

The 2N IP Verso 2.0 is the second generation of the world’s best-selling IP intercom. This main unit has no camera – it is for audio-only communication, e.g. where no picture is needed. It has one call button, an integrated microphone, a 5 W amplifier and a 2 W speaker; power via PoE (802.3af) or 12 V DC. The system is modular (keypad, card readers, Bluetooth, fingerprint reader) and can be installed on the wall or flush. Colour nickel; the frame is ordered separately.

Key features

1 call button, no camera (audio only)
5 W amplifier, 2 W speaker, microphone
PoE 802.3af or 12 V DC
Passive and active output, 1 input
Expandable with modules
Colour nickel

Technical data

Power supply	PoE and/or 12 V/1 A DC
PoE	802.3af (Class 0–12.95 W)
LAN	10/100BASE-TX with Auto-MDIX, RJ-45 jack
Recommended cabling	Cat-5e or better
Passive switch	NO/NC contacts, 30V, 1A, AC, DC
Inputs	1 input - in passive/active mode (-30 V to +30 V DC), OFF = open or Uin> 1.5V / ON = short-circuit or Uin< 1.5V
Active switch output	8 to 12V, DC, max 400mA
Microphone	1 integrated microphone
Amplifier	(Class D) 5W
Speaker	2W/8 Ω
Full duplex	Yes (AEC)
Audio codecs	G.711, G.729, G.722, L16/16 kHz
Sound pressure	78dB
Material	robust zinc cast frame with surface finish (nickel and black color)
Operating temperature	-40 to 60°C
Storage temperature	-40 to 70°C
Humidity	(non-condensing) 10 - 95%
Weight	2kg
Protection rating	IP54 and IK08
