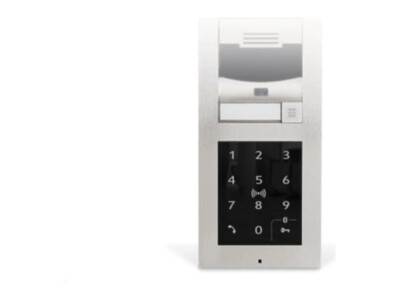

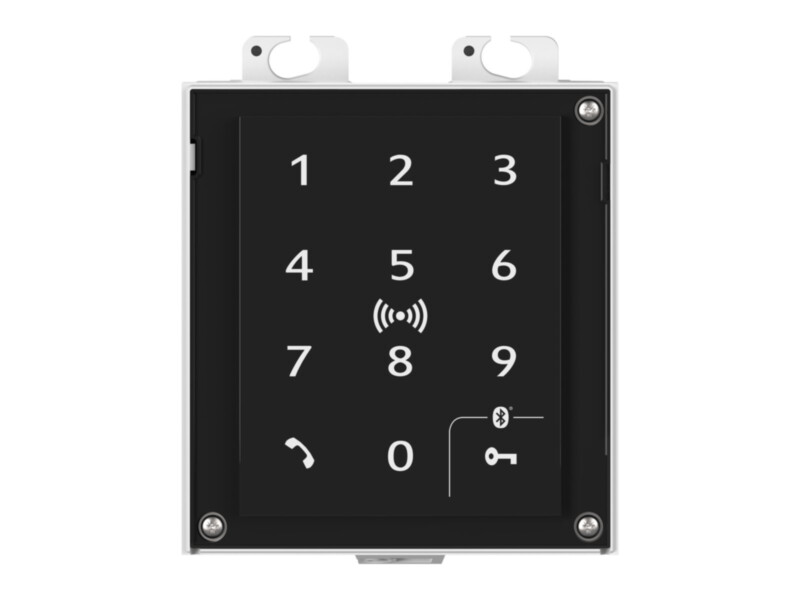

2N IP Verso touch keypad, Bluetooth & RFID reader, 125 kHz, secured 13.56 MHz, NFC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,090.40 €1,352

In stock 11

SKU

91550947-S

Product files

Datasheet

Toote kirjeldus

The module combines three access technologies in a single device: WaveKey Bluetooth mobile credentials, a backup PIN code (or two-factor authentication if the project requires it) and RFID cards or key fobs. The reader also reads secure credentials using 2N PICard technology and secured 13.56 MHz cards (e.g. HID Seos, MIFARE DESFire).

Key features

RFID 125 kHz and secured 13.56 MHz, NFC
Bluetooth 5.0 (BLE), WaveKey
Capacitive touch keypad
Two-factor authentication
2N PICard support

Technical data

Technology	capacitive touch layer (sensitivity 0,1 pF)
Bluetooth	compatible with Bluetooth 5.0 (BLE)
Bluetooth range	short - typically up to 3m, long - typically up to 10m, distances should serve only as an approximate guide and may vary depending on the phone model and installation environment
Encryption	RSA-1024 and AES-128encryption
Modes	touch, tap in app, card
Card frequencies	125kHz, 13.56MHz
125 kHz cards	EM4xxx, HID Prox – versions with 125 kHz support and S in Order No. Only
13.56 MHz cards	ISO14443A, PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (My2N app)
Secured 13.56 MHz cards	ISO14443A (MIFARE® DESFire®), PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (My2N app), HID SE Seos, iClass, MIFARE SE, reads PACs ID (HID iClass cards with SIO object)
