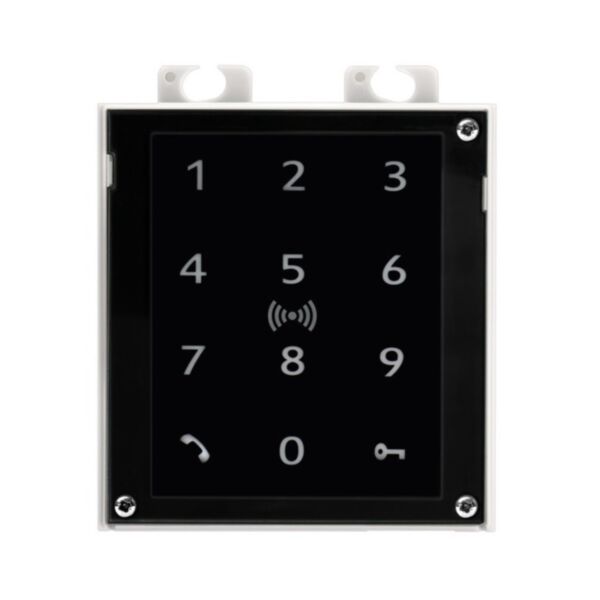

2N IP Verso touch keypad & RFID reader, 125 kHz, 13.56 MHz, NFC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€619.44 €768

Pre-order

SKU

91550946

Product files

Datasheet

Toote kirjeldus

The module combines an RFID reader with a capacitive touch keypad. The multi-frequency reader allows a gradual move to new 13.56 MHz smart cards while the unsecured 125 kHz cards stay in use for as long as needed. The keypad is used for PIN code access and for calling users.

Key features

Capacitive touch keypad
RFID 125 kHz and 13.56 MHz, NFC
PIN access and calling
No false touches on a wet surface

Technical data

Technology	capacitive touch technology, high touch layer sensitivity (0.1pF)
Card frequencies	125kHz, 13.56MHz
125 kHz cards	EM4xxx, HID Prox – versions with 125 kHz support and S in Order No. Only
13.56 MHz cards	ISO14443A, PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (My2N app)
Secured 13.56 MHz cards	ISO14443A (MIFARE® DESFire®), PicoPass (HID iClass), ST SR(IX), NFC (My2N app), HID SE Seos, iClass, MIFARE SE, reads PACs ID (HID iClass cards with SIO object)
