2N IP Verso touch keypad & RFID reader, 125 kHz, 13.56 MHz + HID SE, NFC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€752.84 €934

Pre-order

SKU

91550946-S

Product files

Datasheet

Toote kirjeldus

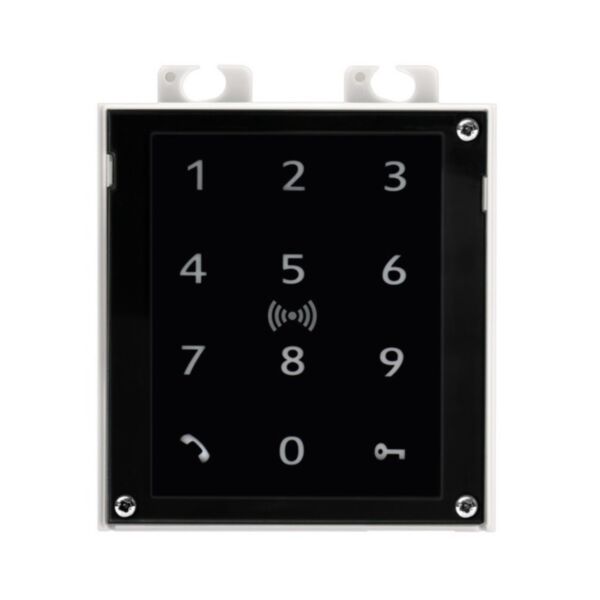

The module combines a capacitive touch keypad with an RFID reader that also reads HID SE (Seos, iClass SE, MIFARE SE) credentials. The multi-frequency reader reads a wide range of cards, from 125 kHz cards to 13.56 MHz cards, plus HID SE (Seos, iClass SE, MIFARE SE). The keypad is used for PIN verification and as an additional layer of security.

Key features

Capacitive touch keypad
125 kHz and 13.56 MHz cards, NFC
Plus HID SE: Seos, iClass SE, MIFARE SE
PIN as an extra security layer

Technical data

Technology	capacitive touch technology, high touch layer sensitivity (0.1pF)
Card frequencies	125kHz, 13.56MHz
125 kHz cards	EM4xxx, HID Prox – versions with 125 kHz support and S in Order No. Only
13.56 MHz cards	PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (My2N app)
Secured 13.56 MHz cards	ISO14443A (MIFARE® DESFire®), PicoPass (HID iClass), FeliCa, ST SR(IX), NFC (My2N app), HID SE Seos, iClass, MIFARE SE, reads PACs ID (HID iClass cards with SIO object)
