Ajax 12-24V PSU for Hub 2/Hub 2 Plus/ReX 2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€31.46 €39

Pre-order

SKU

59359.94.NC

Product files

Datasheet

Product details

Product parameters
Manufacturer	Ajax
Length	98
Width	70
Height	17

Toote kirjeldus

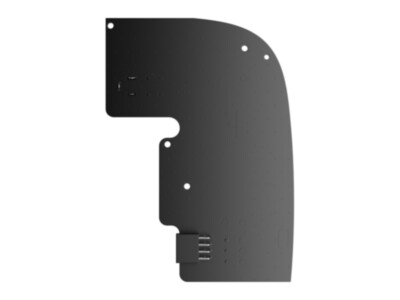

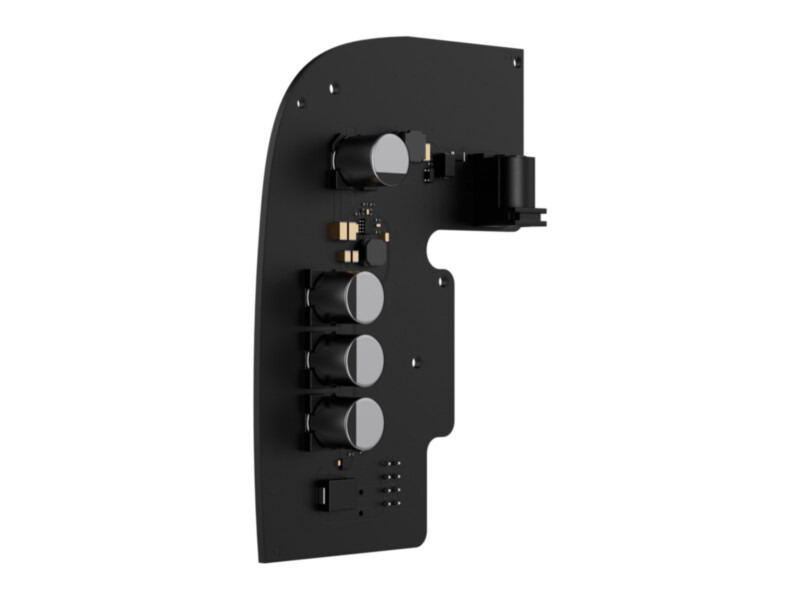

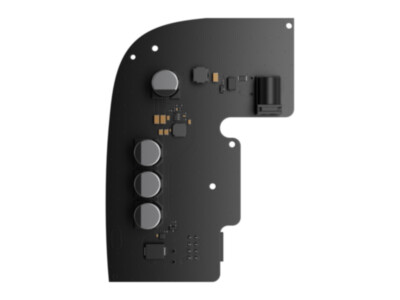

Ajax 12-24V PSU (type A) is an Ajax alternative power supply unit fitted inside the hub or range extender enclosure in place of the standard 110/230 V unit. Compatible with: Hub (4G), Hub 2 (2G/4G), Hub 2 Plus, ReX 2.

It lets the hub run from a 12–24 V source – a car or boat battery, or the low-voltage supply of a trailer or warehouse. It switches on at 8 V and off at 7–7.5 V depending on the load. It has a standard socket (6.5 × 2 mm) and a 5.5 × 2.1 mm plug for the connection. A PH1 screwdriver is all that is needed to install it.

Key features

Input voltage 8–32 V DC
Current up to 1 A
Compatible with: Hub (4G), Hub 2 (2G/4G), Hub 2 Plus, ReX 2
Fitted inside the hub or range extender enclosure
For sites without a stable mains supply

Technical data

Type	alternative power supply unit
Compatible with	Hub (4G), Hub 2 (2G/4G), Hub 2 Plus, ReX 2
Input voltage	8–32 V DC
Current	up to 1 A
Connection	socket 6.5 × 2 mm, plug 5.5 × 2.1 mm
Operating temperature	-10 to 40 °C
Operating humidity	up to 75%
Dimensions	98 × 70 × 17 mm
Weight	26 g
Warranty	24 months
