Ajax 12-24V PSU for Hub/Hub Plus/ReX

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€31.46 €39

Pre-order

SKU

59358.95.NC

Product files

Datasheet

Product details

Product parameters
Manufacturer	Ajax
Length	138
Width	64
Height	13

Toote kirjeldus

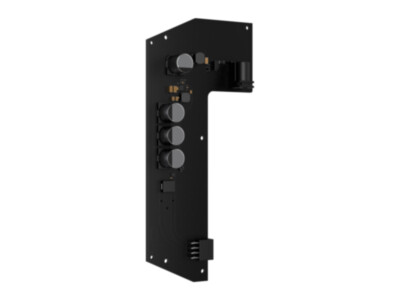

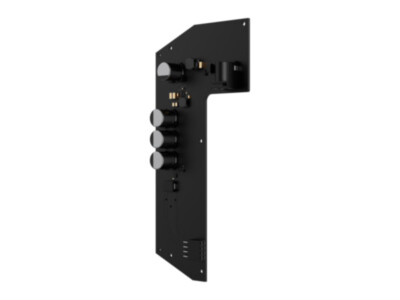

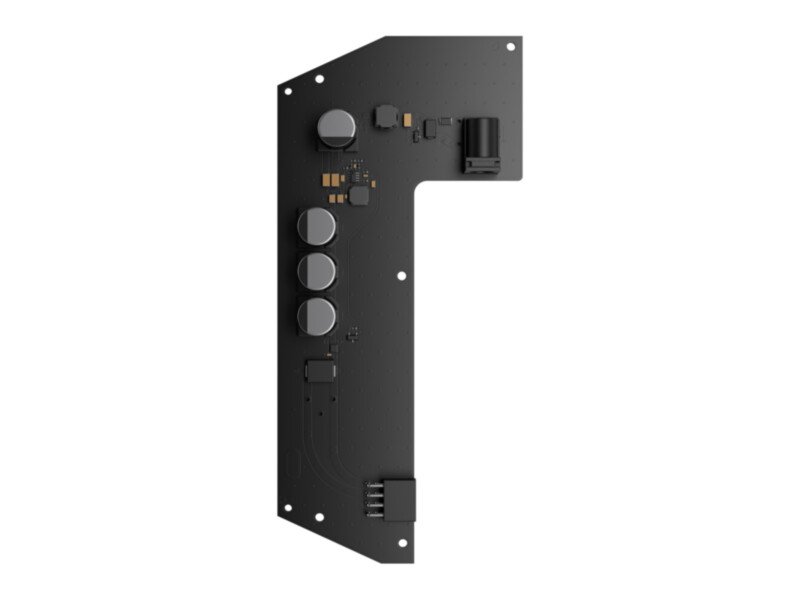

Ajax 12-24V PSU (type B) is an Ajax alternative power supply unit fitted inside the hub or range extender enclosure in place of the standard 110/230 V unit. Compatible with: Hub (2G), Hub (4G), Hub Plus, ReX.

It lets the hub or range extender run from a 12–24 V source – a car or boat battery or a low-voltage supply. It switches on at 8 V and off at 7–7.5 V depending on the load. It has a standard socket (6.5 × 2 mm) and a 5.5 × 2.1 mm plug for the connection. A PH1 screwdriver is all that is needed to install it.

Key features

Input voltage 8–32 V DC
Current up to 1 A
Compatible with: Hub (2G), Hub (4G), Hub Plus, ReX
Fitted inside the hub or range extender enclosure
For sites without a stable mains supply

Technical data

Type	alternative power supply unit
Compatible with	Hub (2G), Hub (4G), Hub Plus, ReX
Input voltage	8–32 V DC
Current	up to 1 A
Connection	socket 6.5 × 2 mm, plug 5.5 × 2.1 mm
Operating temperature	-10 to 40 °C
Operating humidity	up to 75%
Dimensions	138 × 64 × 13 mm
Weight	30 g
Warranty	24 months
