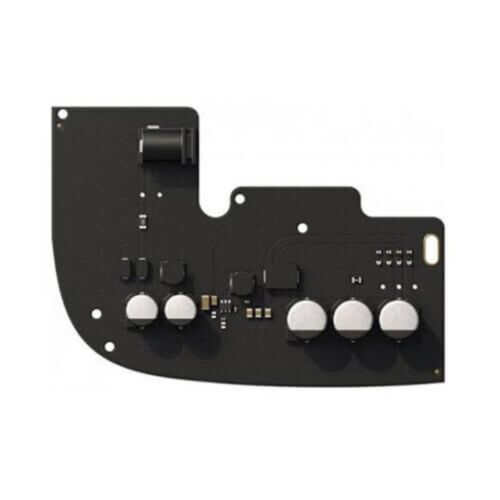

Ajax 6V PSU for Hub 2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€31.46 €39

Pre-order

SKU

38213.78.NC

Product files

Datasheet

Product details

Product parameters
Manufacturer	Ajax
Length	98
Width	70
Height	17

Toote kirjeldus

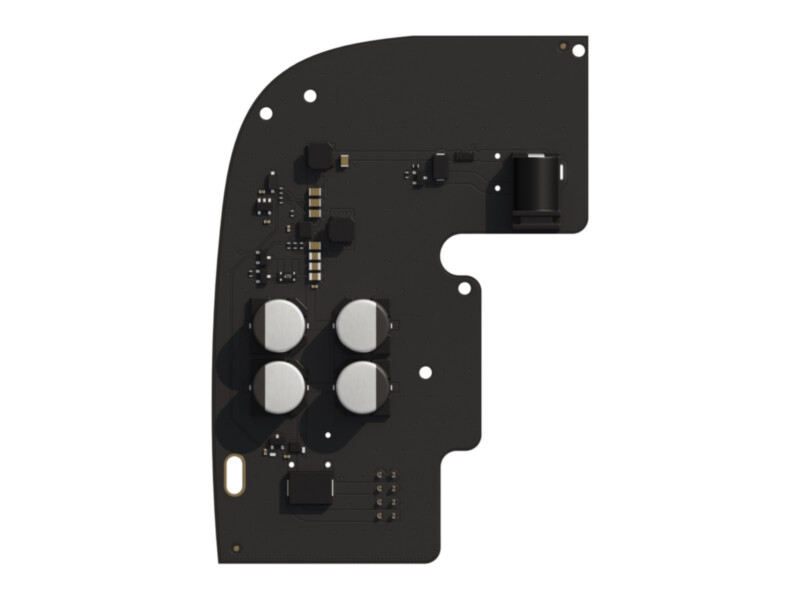

Ajax 6V PSU (type A) is an Ajax alternative power supply unit fitted inside the hub or range extender enclosure in place of the standard 110/230 V unit. Compatible with: Hub (4G), Hub 2 (2G/4G), Hub 2 Plus, ReX 2.

It lets the hub run from an external battery without mains for up to 30 months – in a summer house closed for the winter, on a construction site or in an empty building. It switches on at 4.2 V and off at 3–3.4 V depending on the load. It has a standard socket (6.5 × 2 mm) and a 5.5 × 2.1 mm plug for the connection. A PH1 screwdriver is all that is needed to install it.

Key features

Input voltage 4.2–10 V DC
Current 2.2 A at 4.2 V / 0.8 A at 10 V
Compatible with: Hub (4G), Hub 2 (2G/4G), Hub 2 Plus, ReX 2
Fitted inside the hub or range extender enclosure
For sites without a stable mains supply

Technical data

Type	alternative power supply unit
Compatible with	Hub (4G), Hub 2 (2G/4G), Hub 2 Plus, ReX 2
Input voltage	4.2–10 V DC
Current	2.2 A at 4.2 V / 0.8 A at 10 V
Connection	socket 6.5 × 2 mm, plug 5.5 × 2.1 mm
Operating temperature	-10 to 40 °C
Operating humidity	up to 75%
Dimensions	98 × 70 × 17 mm
Weight	26 g
Warranty	24 months
