Ajax CombiProtect black ЕU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€110.21 €137

Pre-order

SKU

38096.06.BL1

Product files

Datasheet

Product details

Product parameters
Length	110
Width	65
Height	50

Toote kirjeldus

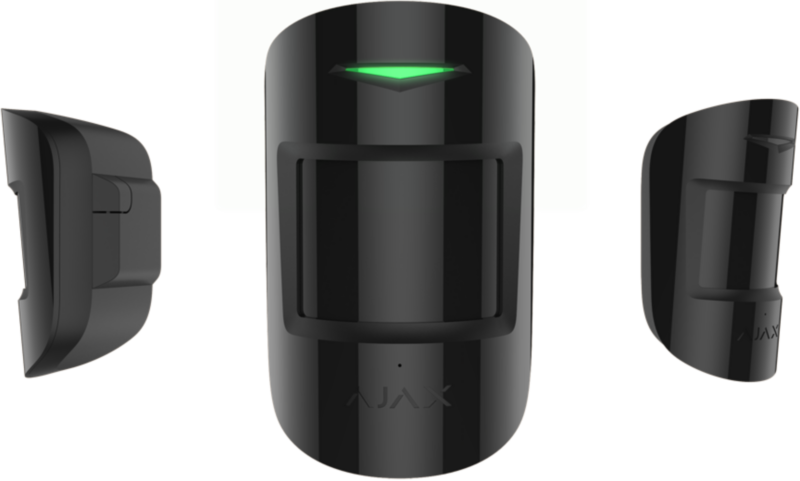

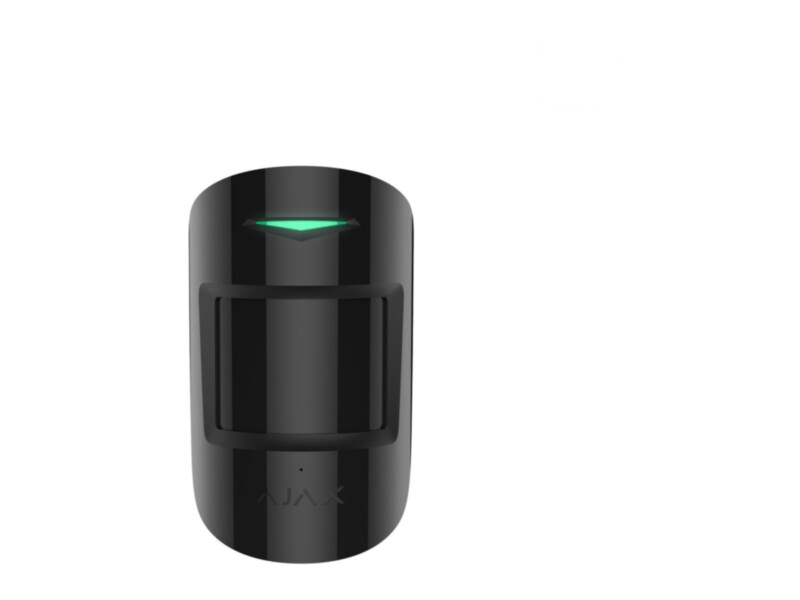

Ajax CombiProtect Jeweller combines two detectors in one enclosure: an infrared motion detector and a glass break detector with a microphone. One device can therefore guard both the room and its windows, which reduces the number of detectors to install.

Motion is detected at a distance of up to 12 m within an 88.5° horizontal field of view, and glass break at up to 9 m within 180°. The sensitivity of both sensors (three levels) can be set and tested from the Ajax app.

False alarms are prevented by the SmartDetect algorithm for motion and DualTone for glass break; pet immunity allows animals of up to 20 kg indoors, and temperature compensation keeps detection accurate. The Jeweller radio link reaches up to 1,200 m and is encrypted.

Features

Two detectors in one: motion up to 12 m and glass break up to 9 m
88.5° motion field of view, 180° glass break sector
Three sensitivity levels for both sensors, set from the app
SmartDetect and DualTone algorithms to prevent false alarms
Pet immunity for animals up to 20 kg and 50 cm tall
Temperature compensation for accurate detection
Jeweller radio up to 1,200 m, encrypted and frequency-hopping
Tamper protection and device authentication

Technical data

Motion detection range	up to 12 m
Communication protocol	Jeweller
Radio communication range	up to 1200 m
Power supply	1 × CR123A
Tamper alarm	Yes
Protection against spoofing	Yes
Ingress protection rating	IP50
Operating temperature range	from -10 °C up to +40 °C
Operating humidity	up to 75%
Dimensions (L × W × H)	110 × 65 × 50 mm
Weight	91 g
Warranty	24 months
