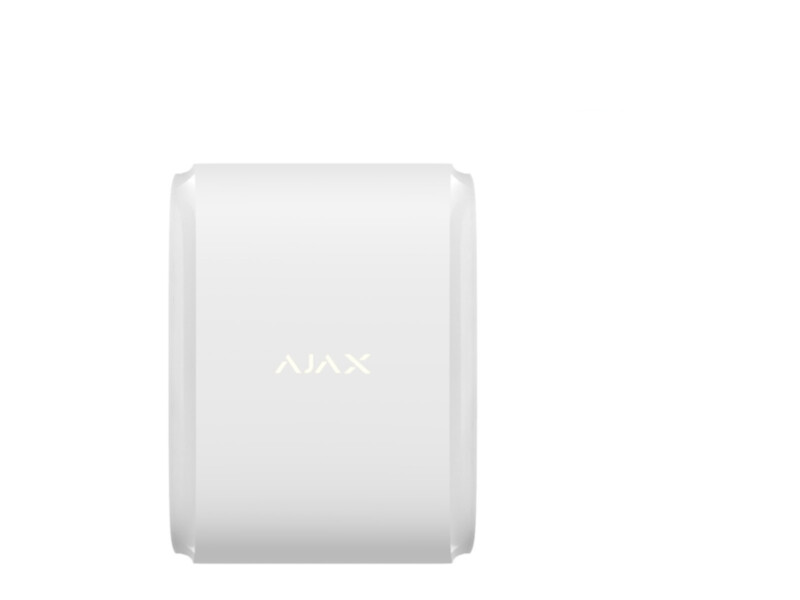

Ajax DualCurtain Outdoor (8EU) white

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€275.52 €342

Pre-order

SKU

39055.81.WH1

Product files

Datasheet

Product details

Product parameters
Manufacturer	Ajax
Length	174
Width	123
Height	88

Toote kirjeldus

Ajax DualCurtain Outdoor Jeweller is a wireless outdoor detector that creates two narrow curtain zones along a building wall – up to 15 m in each direction. With four IR sensors it detects an intruder before they reach a window or door.

The detection range of each direction (4–15 m) is set separately; near-zone detection and a 3° tilt of the field of view are available. SmartDetect and ELSA algorithms and three sensitivity levels reduce false alarms, and animals up to 80 cm tall do not trigger it. The detector recognises masking and the tamper switch reports removal. IP54, operating temperature −25 to +60 °C; communication with the hub over Jeweller radio at up to 1,700 m.

Key features

Two curtain zones, 4–15 m each
4 IR sensors
Near-zone detection, 3° tilt
Pet immunity up to 80 cm
Anti-masking and tamper switch
IP54, −25 to +60 °C

Technical data

Type	outdoor two-way curtain detector
Sensor	4 × IR sensor
Detection range	4–15 m each side (mounting height 0.8–1.3 m)
Field of view	horizontal 4.5°, vertical 90°
Pet immunity	up to 80 cm
Radio communication	Jeweller, up to 1,700 m in open space
Tamper switch	yes, + anti-masking
Colour	white
Protection rating	IP54
Operating temperature	-25 to 60 °C
Operating humidity	up to 95%
Dimensions	174 × 123 × 88 mm
Weight	615 g
Warranty	24 months
