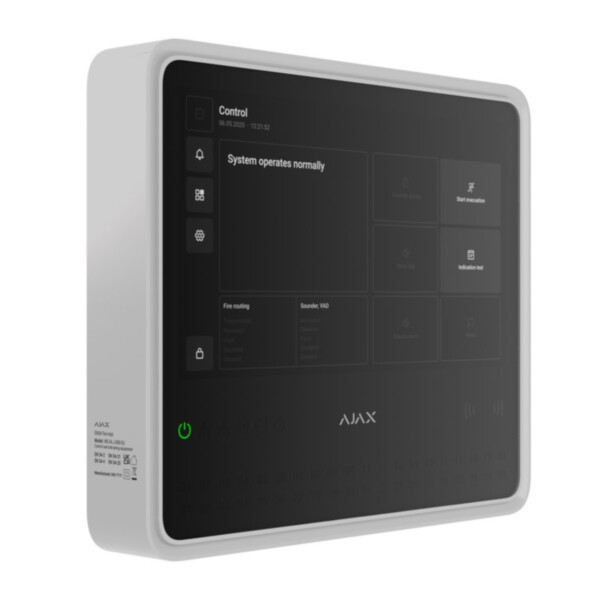

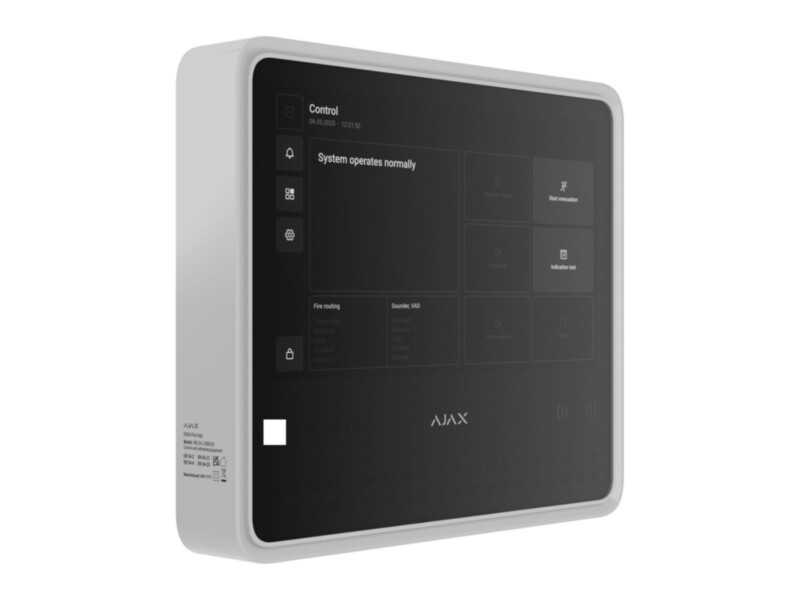

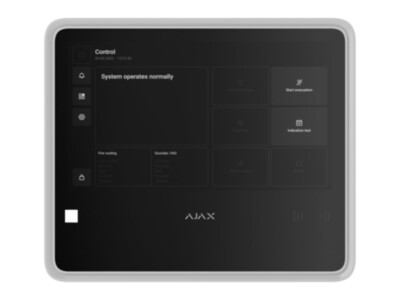

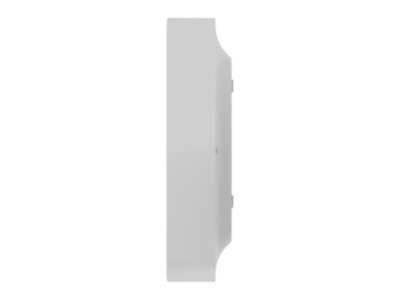

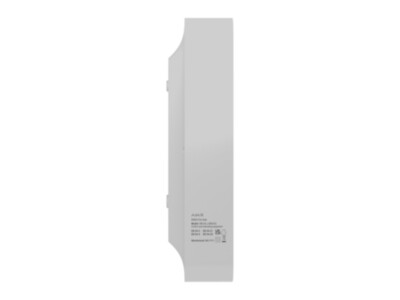

Ajax EN54 Fire Hub white

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€1,083.35 €1,343

In stock 2

SKU

125732.315.WH

Product files

Datasheet

Product details

Product parameters
Length	263
Width	223
Height	54

Toote kirjeldus

Ajax EN54 Fire Hub is the control and indicating equipment (CIE) of a wireless fire safety system, compliant with EN 54. One hub supports up to 200 devices — EN54-range smoke, heat and CO detectors, sounders, visual alarm devices and manual call points — divided into up to 40 fire zones, where each zone can cover several rooms.

The system supports up to 200 users, 80 rooms and 25 security groups, plus up to 64 automation scenarios: by alarm, by schedule, by arming or by air readings (temperature, humidity, CO₂). The event log holds 6,000 records that can also be viewed on the hub's display.

Devices communicate over Jeweller radio at a range of up to 1,800 m, while photo verification and firmware updates travel over the Wings protocol. All communication is encrypted and uses frequency hopping, which protects against interception and jamming.

Features

Up to 200 devices and 40 fire zones in one system
Up to 200 users, 80 rooms and 25 security groups
Up to 64 automation scenarios (alarm, schedule, temperature, CO₂)
Event log of 6,000 records, viewable on the display
EN 54 compliant control and indicating equipment
Jeweller radio up to 1,800 m, Wings for photos and updates
Encrypted communication with frequency hopping

Technical data

Resolution	up to 960 × 720 pixels / Depends on the detector.
Communication protocol	Jeweller
Radio frequency band	866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region.
Radio communication range	up to 1800 m
Radio communication encryption	Yes
Protection against spoofing	Yes
Ingress protection rating	IP20
Operating temperature range	from –10 °C up to +40 °C
Operating humidity	up to 75% non-condensing
Dimensions (L × W × H)	263 × 223 × 54 mm
Weight	1526 g
Warranty	24 months
