Ajax EN54 FireProtect (Smoke) black

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€116.24 €144

Pre-order

SKU

119922.275.BL1

Product files

Datasheet

Product details

Product parameters
Length	124
Width	124
Height	48

Toote kirjeldus

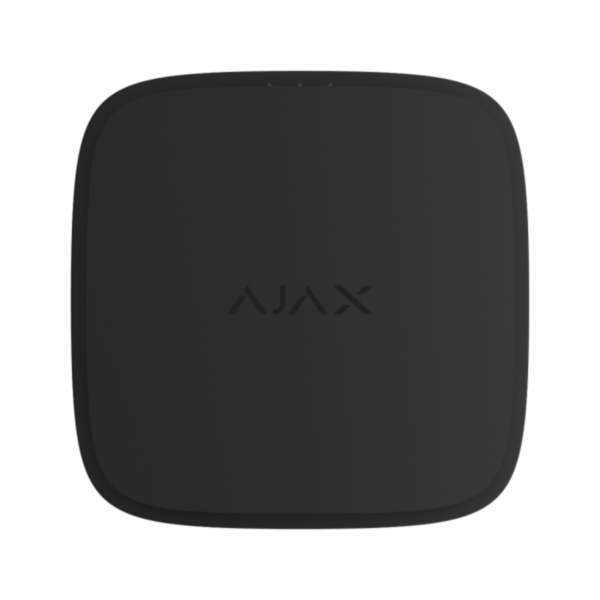

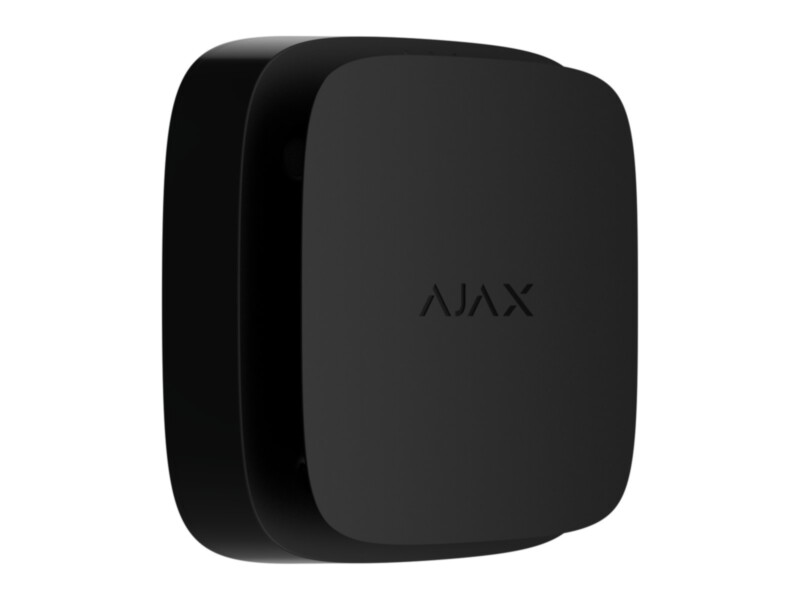

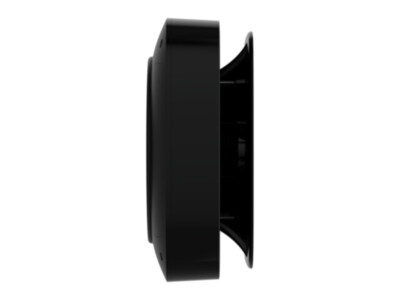

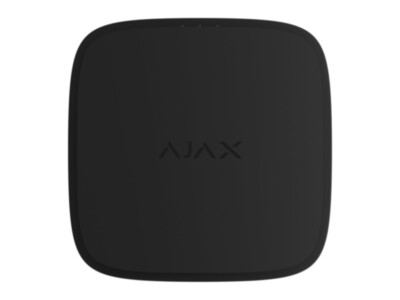

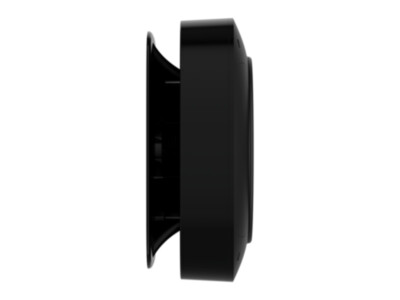

Ajax EN54 FireProtect (Smoke) Jeweller is a wireless smoke detector for a professional fire safety system. It belongs to the EN 54 compliant Ajax Fire range controlled by the EN54 Fire Hub and suits office and commercial buildings as well as apartment blocks.

Smoke is detected by a dual-spectrum optical sensor that judges the size of particles in the air and tells smoke from water vapour, which avoids false alarms next to a bathroom or a kitchen. A patented smoke chamber protects the sensor from dust, dirt and insects, extending the detector's working life.

A three-colour LED (red, yellow, green) shows the state of the detector: alarm, test or fault. The SmartBracket mounting panel and its lock secure the detector to the ceiling, and the tamper button reports removal. The two pre-installed CR123A batteries last up to 6 years and can be replaced without tools. The Jeweller radio link reaches up to 1,700 m and is encrypted.

Features

Dual-spectrum optical smoke sensor that tells smoke from water vapour
Patented smoke chamber protects against dust, dirt and insects
EN 54 compliant, part of the Ajax Fire system
Three-colour LED indication: alarm, test, fault
SmartBracket mount with a lock and a tamper button
Two pre-installed CR123A batteries with a life of up to 6 years
Tool-free battery replacement and reverse polarity protection
Jeweller radio up to 1,700 m, encrypted and frequency-hopping

Technical data

Sensing element	dual-spectrum optical sensor / Detects smoke based on the size of particles in the air.
Communication protocol	Jeweller
Radio frequency band	866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region.
Radio communication range	up to 1700 m
Radio communication encryption	Yes
Power supply	2 × CR123A
Battery life	up to 6 years
Protection against spoofing	Yes
Ingress protection rating	IP20
Operating temperature range	from 0 °C up to +50 °C
Operating humidity	up to 80%
Dimensions (L × W × H)	124 × 124 × 48 mm
Weight	281 g
Warranty	24 months
