Ajax EN54 FireProtect Sounder/VAD white

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€251.38 €312

Pre-order

SKU

118599.279.WH1

Product files

Datasheet

Product details

Product parameters
Length	145
Width	145
Height	51

Toote kirjeldus

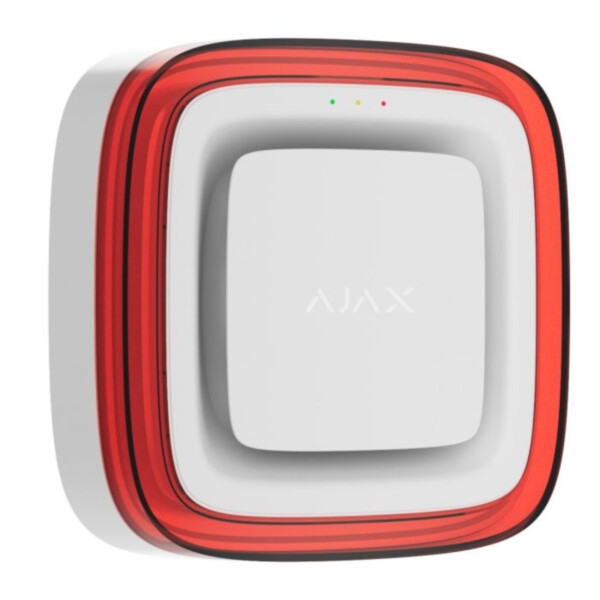

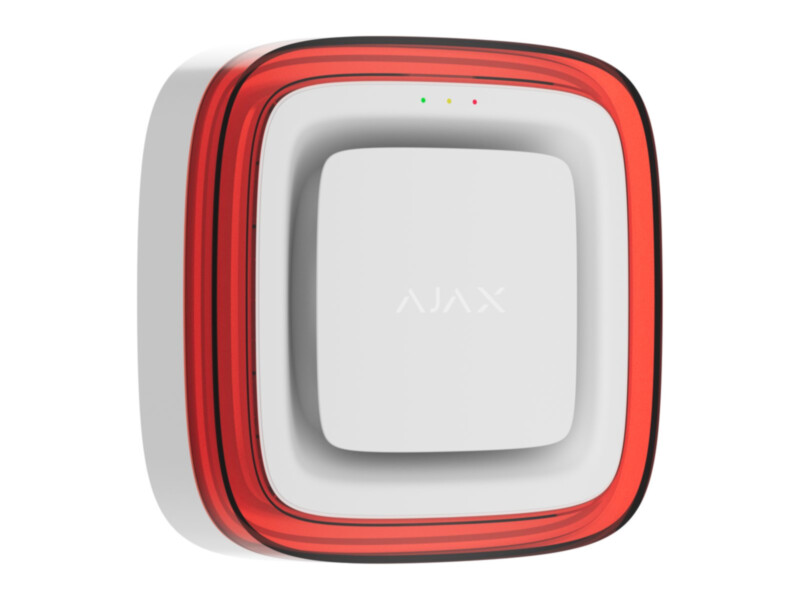

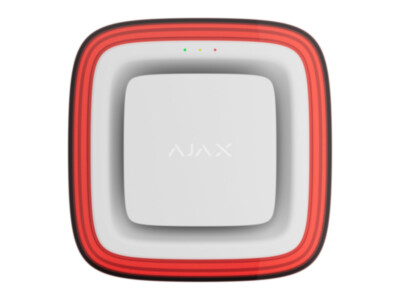

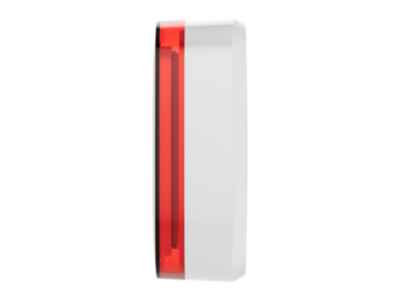

Ajax EN54 FireProtect (Sounder/VAD) Jeweller is a wireless fire alarm device that signals with sound and light at the same time. The volume reaches 100 decibels at one metre, and the light signal comes from an LED frame around the device that flashes at 0.5 Hz.

There are 32 sound patterns to choose from, so the sounder can be told apart from other signals in the building. The sound of all sounders connected to the same control and indicating equipment (CIE) is synchronised automatically, so the alarm plays as one pattern throughout the building.

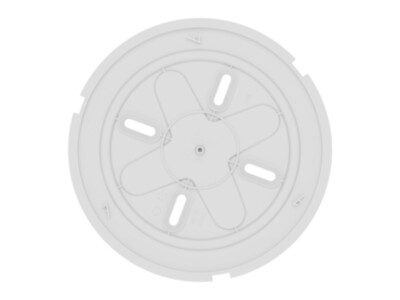

The device belongs to the EN 54 compliant Ajax Fire range. A separate test mode checks that the alarm is clearly audible and visible. The SmartBracket mounting panel with a lock holds the device in place and the tamper button reports removal. The four pre-installed CR123A batteries last up to 5 years and can be replaced without tools.

Features

Sound and light at the same time: a sounder and an LED frame
Volume up to 100 dB at 1 m, 32 sound patterns
Light signal at 0.5 Hz (90 ms on, 1,910 ms off)
Sound is synchronised automatically across all sounders
EN 54 compliant, part of the Ajax Fire system
Test of alarm audibility and visibility
Four pre-installed CR123A batteries with a life of up to 5 years
SmartBracket mount with a lock and a tamper button

Technical data

Communication protocol	Jeweller
Radio frequency band	866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz / Depends on the sales region.
Radio communication range	up to 1700 m
Radio communication encryption	Yes
Power supply	4 × CR123A
Battery life	up to 5 years
Protection against spoofing	Yes
Ingress protection rating	IP54
Operating temperature range	from –10 °C up to +60 °C
Operating humidity	up to 80%
Dimensions (L × W × H)	145 × 145 × 51 mm
Weight	561 g
Warranty	24 months
