Ajax EN54 FireProtect (Sounder) white

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€192.29 €238

Pre-order

SKU

118602.278.WH1

Product files

Datasheet

Product details

Product parameters
Length	145
Width	145
Height	51

Toote kirjeldus

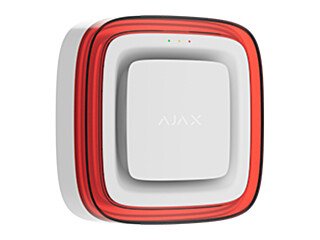

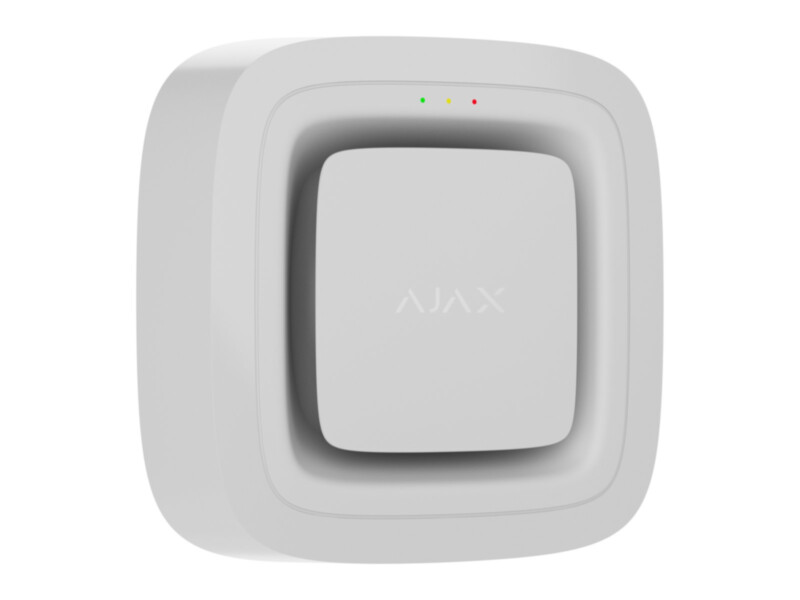

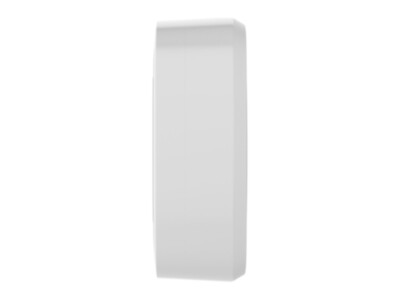

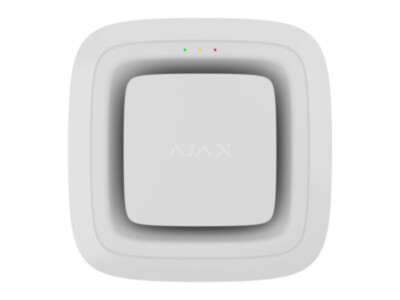

Ajax EN54 FireProtect (Sounder) Jeweller is a wireless fire sounder that signals an alarm at up to 100 decibels measured at one metre. It belongs to the EN 54 compliant Ajax Fire range controlled by the EN54 Fire Hub.

There are 32 sound patterns to choose from, so the fire signal stands apart from other sounds in the building. The sound of all sounders connected to the same control and indicating equipment (CIE) is synchronised automatically, so the alarm plays as one pattern. A separate test mode checks that the alarm is clearly audible in every room.

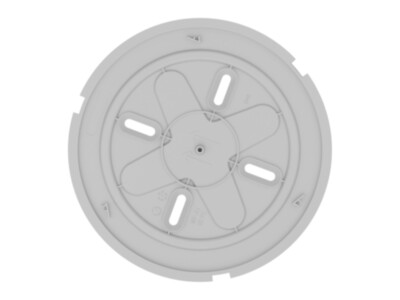

The SmartBracket mounting panel with a lock holds the sounder firmly in place and the tamper button reports removal. The four pre-installed CR123A batteries last up to 5 years, replacement needs no tools, and reverse polarity protection prevents damage. The Jeweller radio link reaches up to 1,700 m and is encrypted.

Features

Volume up to 100 dB at 1 m
32 sound patterns to distinguish the alarm from other signals
Sound is synchronised automatically across all sounders
EN 54 compliant, part of the Ajax Fire system
Test of alarm audibility
Four pre-installed CR123A batteries with a life of up to 5 years
SmartBracket mount with a lock and a tamper button
Jeweller radio up to 1,700 m, encrypted and frequency-hopping

Technical data

Communication protocol	Jeweller
Radio frequency band	866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz / Depends on the sales region.
Radio communication range	up to 1700 m
Radio communication encryption	Yes
Power supply	4 × CR123A
Battery life	up to 5 years
Protection against spoofing	Yes
Ingress protection rating	IP54
Operating temperature range	from –10 °C up to +60 °C
Operating humidity	up to 80%
Dimensions (L × W × H)	145 × 145 × 51 mm
Weight	527 g
Warranty	24 months
