Ajax EN54 FireProtect (VAD) black

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€207.28 €257

Pre-order

SKU

118606.277.BL1

Product files

Datasheet

Product details

Product parameters
Length	145
Width	145
Height	51

Toote kirjeldus

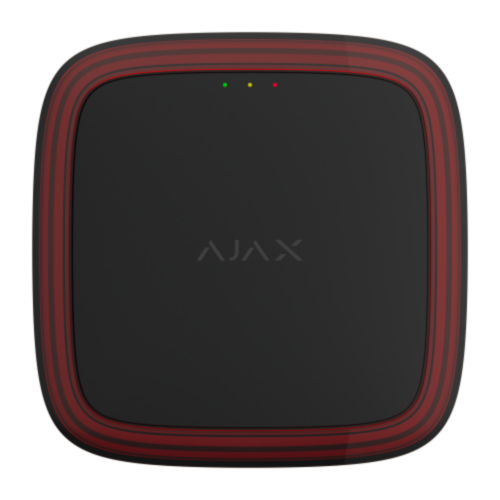

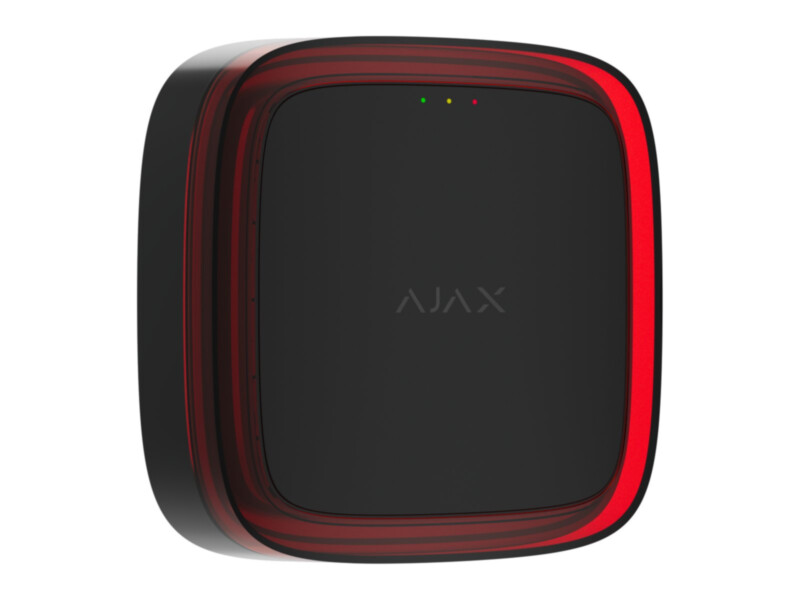

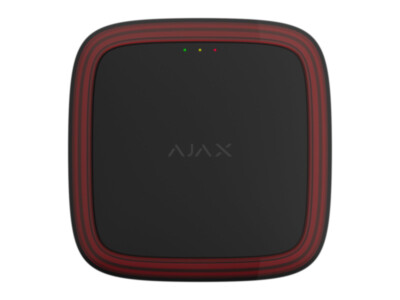

Ajax EN54 FireProtect (VAD) Jeweller is a wireless visual alarm device. The bright LED frame around the device flashes at 0.5 Hz during an alarm and gives warning where a sound signal may go unnoticed: in noisy production areas, for people with hearing loss, or in rooms where headphones are worn.

The device belongs to the EN 54 compliant Ajax Fire range controlled by the EN54 Fire Hub. The visibility of the light signal can be checked in a separate test mode without raising an alarm in the whole building.

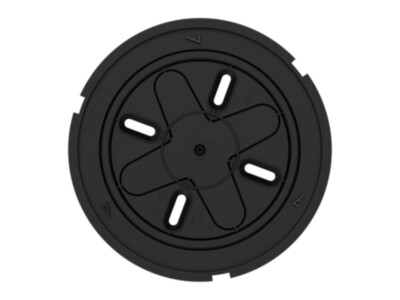

The SmartBracket mounting panel with a lock holds the device in place and the tamper button reports removal. The four pre-installed CR123A batteries last up to 5 years and can be replaced without tools. The Jeweller radio link reaches up to 1,700 m and is encrypted and frequency-hopping.

Features

Light signal: the LED frame flashes at 0.5 Hz
Suited to noisy rooms and to people with hearing loss
EN 54 compliant, part of the Ajax Fire system
Test of the visibility of the light signal
Four pre-installed CR123A batteries with a life of up to 5 years
SmartBracket mount with a lock and a tamper button
Jeweller radio up to 1,700 m, encrypted and frequency-hopping

Technical data

Communication protocol	Jeweller
Radio frequency band	866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz / Depends on the sales region.
Radio communication range	up to 1700 m
Radio communication encryption	Yes
Power supply	4 × CR123A
Battery life	up to 5 years
Protection against spoofing	Yes
Ingress protection rating	IP54
Operating temperature range	from –10 °C up to +60 °C
Operating humidity	up to 80%
Dimensions (L × W × H)	145 × 145 × 51 mm
Weight	509 g
Warranty	24 months
