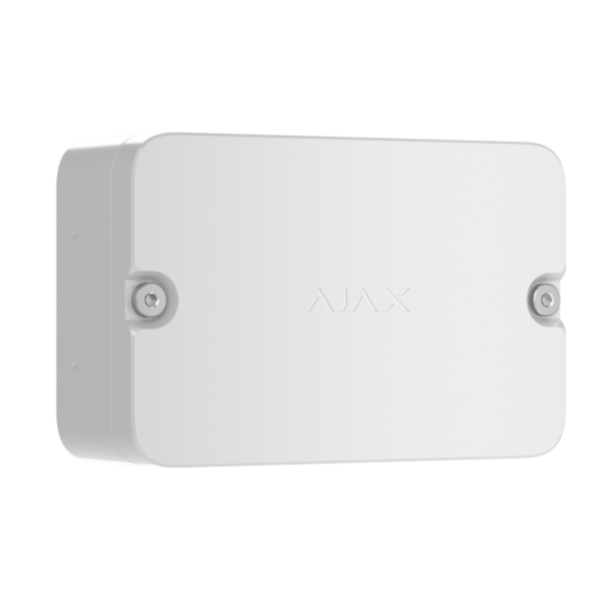

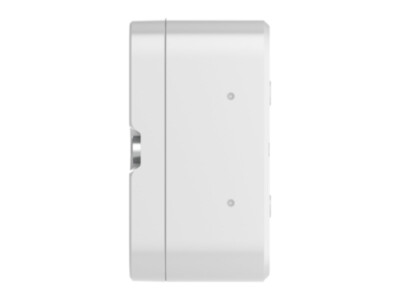

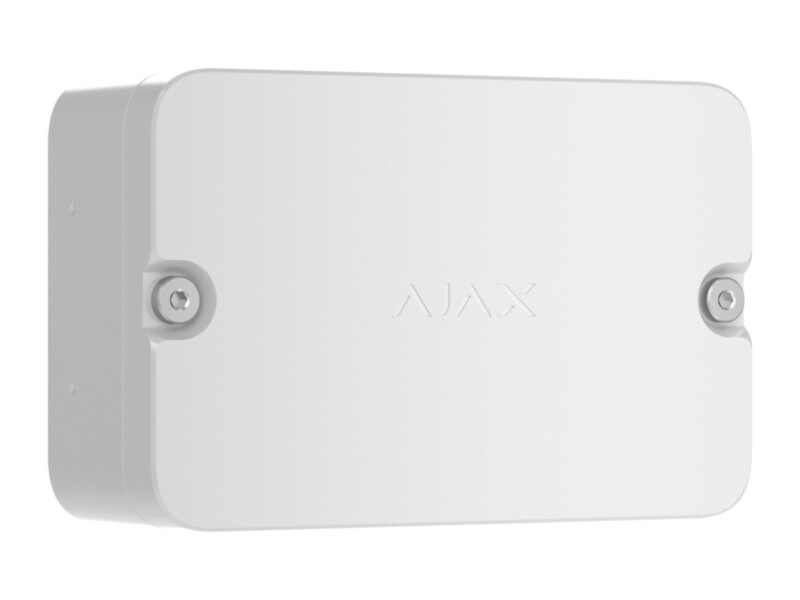

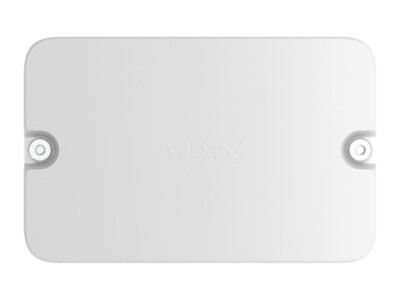

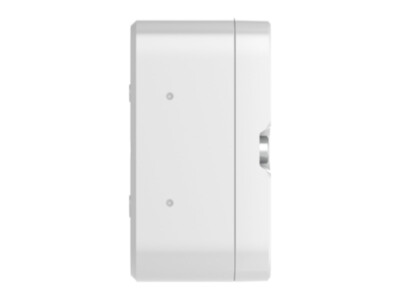

Ajax EN54 I/O 2x2 white

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€163.20 €202

In stock 10

SKU

124590.280.WH1

Product files

Datasheet

Product details

Product parameters
Length	116
Width	180
Height	62

Toote kirjeldus

Ajax EN54 I/O Module (2X2) Jeweller connects wired devices to the EN 54 compliant Ajax Fire system. The module has two inputs and two relay outputs: the inputs take existing wired detectors or manual call points, and the outputs control external equipment.

The inputs support NO, NC, EOL, 2EOL and 3EOL connection types, and resistors of 0.47, 1.2, 2.7 and 6.2 kΩ are included. The wired line can run up to 100 m with a fire-resistant 2 × 1.5 mm² cable, and the cable cross-section may be 0.4–2.5 mm².

The relay outputs handle 10–250 V AC up to 10 A and 10–30 V DC up to 5 A (resistive load), so they can drive smoke vents, door closers, ventilation or a public address system. The installer sets the event type for each input in the Ajax app, which also determines the wording of the notification.

Features

Two inputs and two relay outputs
NO, NC, EOL, 2EOL and 3EOL connection types
0.47 / 1.2 / 2.7 / 6.2 kΩ resistors included
Wired line of up to 100 m (fire-resistant 2 × 1.5 mm² cable)
Outputs rated 10–250 V AC up to 10 A and 10–30 V DC up to 5 A
Event type selectable per input in the app
EN 54 compliant, part of the Ajax Fire system
Encrypted Jeweller radio with frequency hopping

Technical data

Communication protocol	Jeweller
Radio frequency band	866.0 – 866.5 MHz / 868.0 – 868.6 MHz / 868.7 – 869.2 MHz / 905.0 – 926.5 MHz / 915.85 – 926.5 MHz / 921.0 – 922.0 MHz / Depends on the sales region.
Radio communication range	up to 1700 m
Radio communication encryption	Yes
Power supply	2 × CR123A
Battery life	up to 5 years
Tamper alarm	Yes
Protection against spoofing	Yes
Ingress protection rating	IP21C
Operating temperature range	from 0 °C up to +50 °C
Operating humidity	up to 80%
Dimensions (L × W × H)	116 × 180 × 62 mm
Weight	547 g
Warranty	24 months
