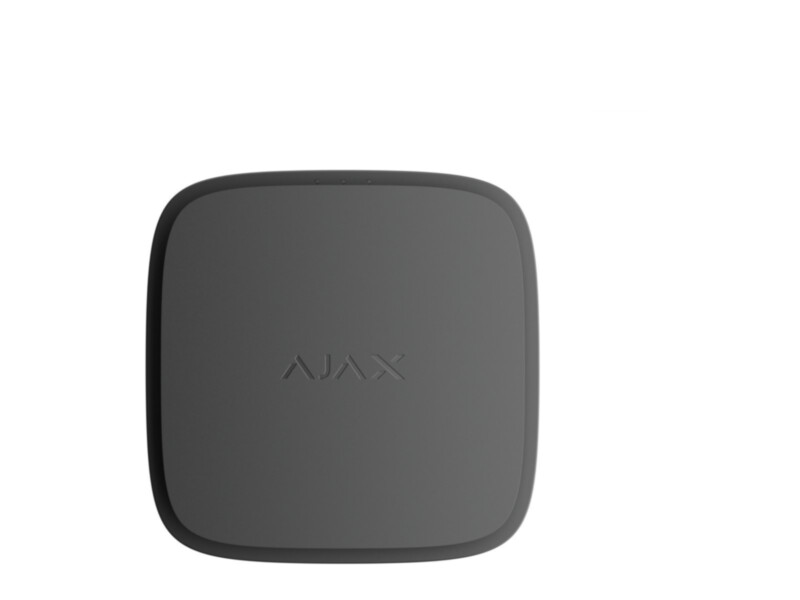

Ajax FireProtect 2 SB (Heat) (8EU) black

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€110.52 €137

Pre-order

SKU

63215.136.BL1

Product files

Datasheet

Product details

Product parameters
Manufacturer	Ajax
Length	44
Width	86
Height	86

Toote kirjeldus

Ajax FireProtect 2 SB (Heat) Jeweller is an Ajax wireless heat detector. It uses the following sensors: a temperature sensor (class A1R, EN 54-5) that alarms above 64 °C or when the temperature rises by more than 10 °C a minute.

The SB version has two built-in lithium batteries that last the detector's whole 10-year service life – no battery replacement is needed. The built-in sounder (85 dB at 3 m) signals the alarm immediately, and interconnected detectors raise the alarm in other rooms too. The front button tests the detector and silences the alarm, and an LED shows power and faults. The tamper switch reports removal; communication with the hub is over Jeweller radio at up to 1,700 m.

Key features

Sensors: heat
Built-in batteries, 10-year life
85 dB sounder
Interconnected alarms
Test button and LED indicator
Tamper switch, Jeweller up to 1,700 m

Technical data

Type	heat detector
Heat sensor	A1R (EN 54-5): > 64 °C or > 10 °C/min
Sounder	85 dB (3 m)
Radio communication	Jeweller, up to 1,700 m in open space
Power supply	2 built-in lithium batteries, 10 years
Tamper switch	yes
Colour	black
Protection rating	IP20
Operating temperature	0 to 50 °C
Operating humidity	up to 80%
Dimensions	44 × 86 × 86 mm
Weight	142 g
Warranty	24 months
