Ajax GlandBox Black

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€72.22 €90

In stock 1

SKU

125718.314.BL

Product files

Datasheet

Product details

Product parameters
Length	263
Width	223
Height	40

Toote kirjeldus

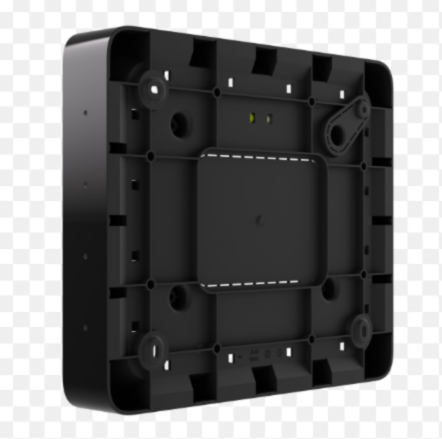

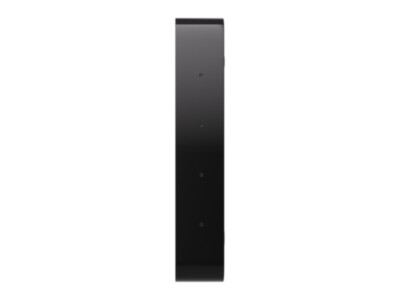

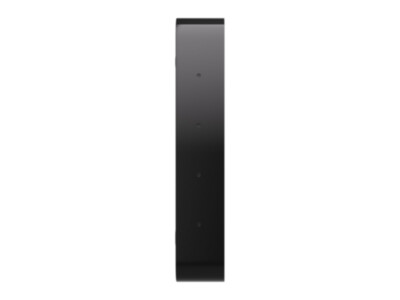

Ajax GlandBox is a mounting plate that lets an Ajax control panel be installed where the wiring does not come out of the wall. The housing has 16 positions for cable glands — four on each side — with a gland diameter of up to 20 mm (glands are not included).

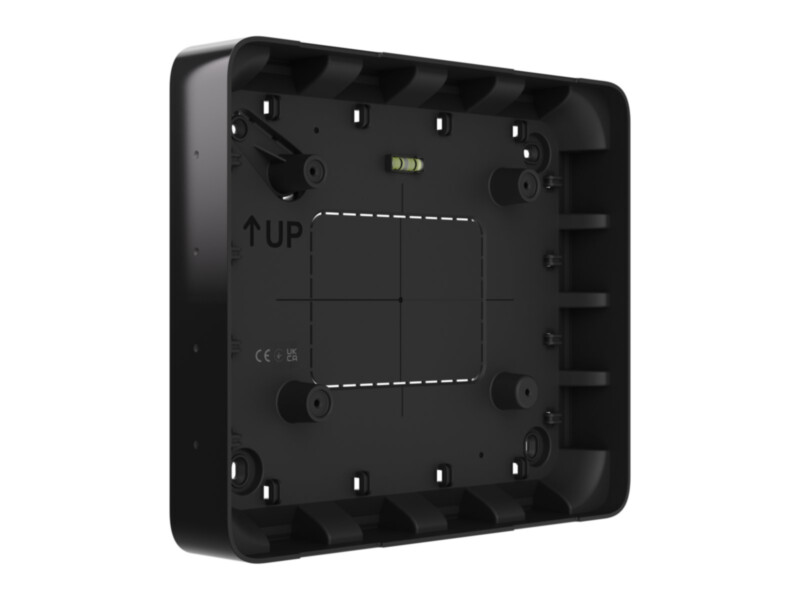

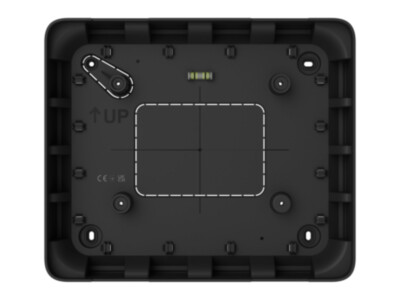

Installation is made easier by ready recesses for drilling, cable fasteners for ties, a built-in bubble level and a marking for the centre of the panel. The "UP" key shows the correct orientation, so the device ends up level without separate measuring.

Tamper protection still works with the plate: its perforated part keeps the tamper button pressed, so removing the panel raises an alarm immediately. The material meets the UL 94 V-0 flammability rating.

Features

16 positions for cable glands (four on each side)
Gland diameter up to 20 mm (glands not included)
Ready recesses for drilling and cable fasteners
Built-in bubble level, "UP" key and centre marking
Supports the control panel's tamper protection
UL 94 V-0 flammability rating

Technical data

Operating temperature range	from –10 °C up to +40 °C
Operating humidity	up to 75% non-condensing
Dimensions (L × W × H)	263 × 223 × 40 mm
Weight	335 g
Warranty	24 months
