| Length | 90 |
|---|---|
| Width | 20 |
| Height | 20 |

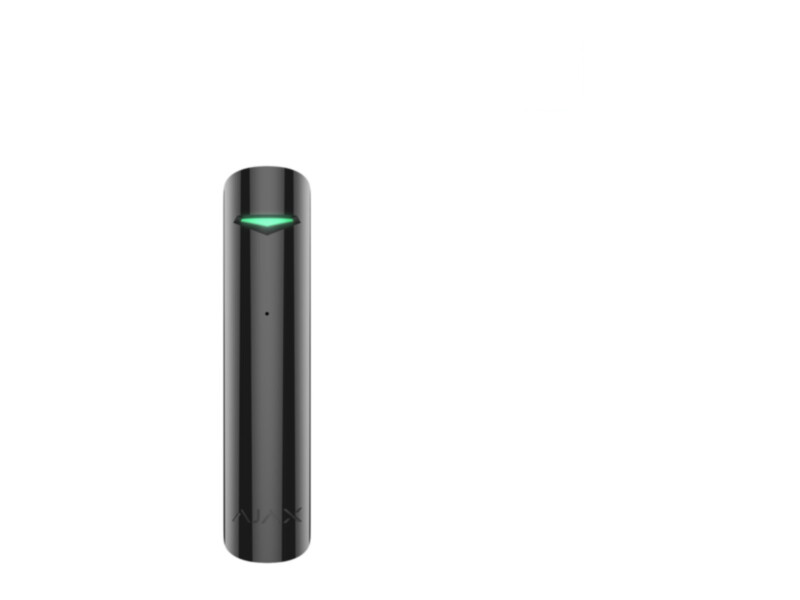

Ajax GlassProtect Jeweller is a wireless glass break detector that listens to windows and glass doors with an electret microphone. It detects breaking glass at a distance of up to 9 m within a 180-degree sector, so one device can guard several windows.
To avoid false alarms, the detector uses the two-stage DualTone algorithm: an alarm is raised only when the microphone hears the low sound of the glass flexing followed by the high sound of it breaking. A barking dog, traffic noise or clattering dishes therefore do not trigger it. Sensitivity can be set at three levels and tested from the Ajax app.
A wired detector with a normally closed (NC) contact can be connected to the terminals. The Jeweller radio link reaches up to 1,000 m, is encrypted and frequency-hopping, and tamper protection reports any attempt to open or remove the enclosure.
| Sensing element | electret microphone |
|---|---|
| Communication protocol | Jeweller |
| Radio frequency band | 866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region. |
| Radio communication range | up to 1000 m |
| Radio communication encryption | Yes |
| Power supply | 1 × CR123A |
| Tamper alarm | Yes |
| Protection against spoofing | Yes |
| Ingress protection rating | IP50 |
| Operating temperature range | from -10 °C up to +40 °C |
| Operating humidity | up to 75% |
| Dimensions (L × W × H) | 90 × 20 × 20 mm |
| Weight | 30 g |
| Warranty | 24 months |
