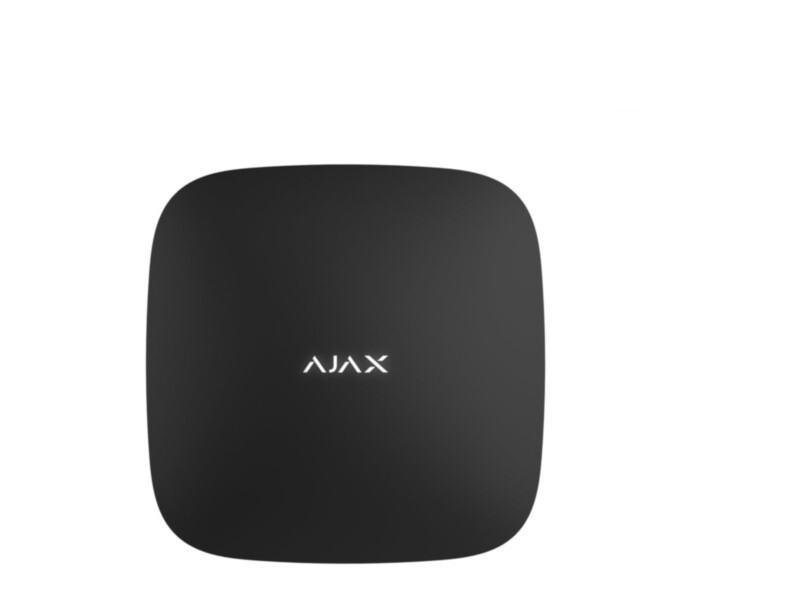

Ajax Hub 2 Plus black EU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€460.98 €572

Pre-order

SKU

38244.40.BL1

Product files

Datasheet

Product details

Product parameters
Length	163
Width	163
Height	36

Toote kirjeldus

Ajax Hub 2 Plus is a security system control panel for larger sites: it supports up to 200 Ajax devices and divides the system into security groups and rooms. Photo verification works faster than on an ordinary hub because the Wings protocol has more bandwidth.

Unlike the ordinary Hub 2, it has four communication channels: Ethernet, Wi-Fi and two SIM cards (2G/3G/4G). The channels work in parallel and the hub switches between them automatically, so an internet or power failure does not leave the site unguarded.

Automation scenarios link detectors and relays together: lighting can be switched on by an alarm, water shut off when a leak detector triggers, or heating run to a schedule. The internal lithium battery keeps the system running during a power cut, and all communication is encrypted and uses frequency hopping.

Features

Up to 200 wireless Ajax devices
Four channels: Ethernet, Wi-Fi and two SIM cards (2G/3G/4G)
Automatic switching between channels
Faster photo verification with MotionCam detectors
Automation scenarios by alarm, schedule and detector events
Built-in backup battery for power cuts
Monitoring station protocols SIA (DC-09), SurGard (Contact ID)
Encrypted communication with frequency hopping

Technical data

Resolution	up to 640 × 480 pixels / Depends on the detector.
Communication protocol	Jeweller
Radio frequency band	866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / (UL) / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region.
Radio communication encryption	Yes
Tamper alarm	Yes
Protection against spoofing	Yes
Ingress protection rating	IP20
Operating temperature range	from −10°C up to +40°C
Operating humidity	up to 75%
Dimensions (L × W × H)	163 × 163 × 36 mm
Weight	367 g
Warranty	24 months
