Ajax Hub 2 white EU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€299.13 €371

In stock 5

SKU

38239.40.WH1

Product files

Datasheet

Product details

Product parameters
Length	163
Width	163
Height	36

Toote kirjeldus

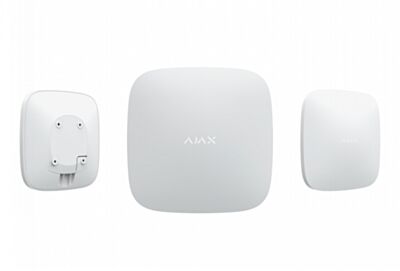

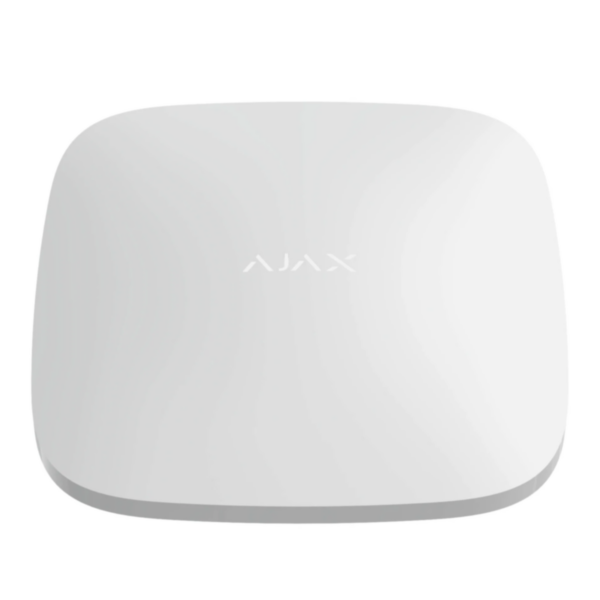

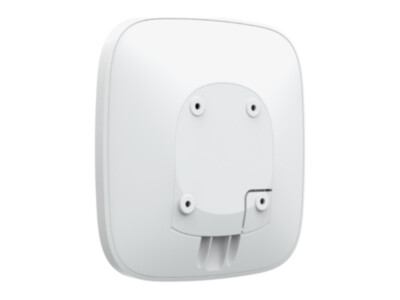

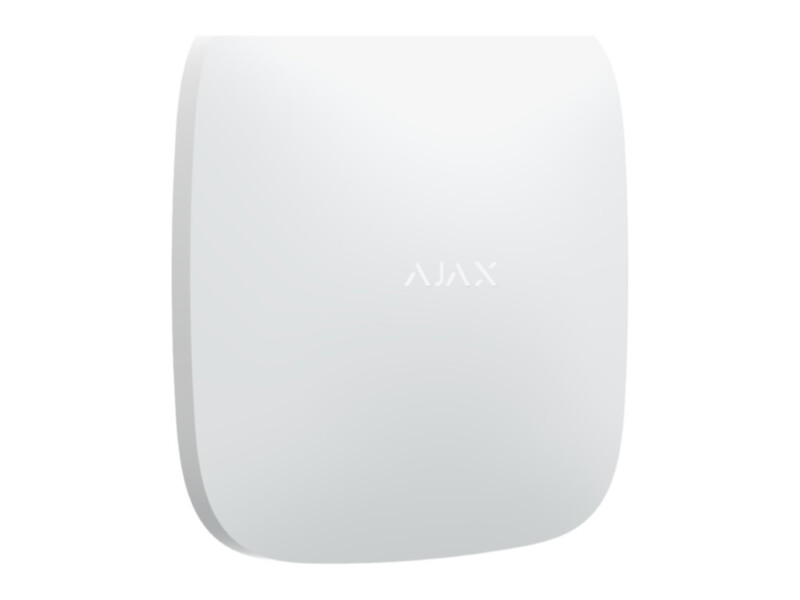

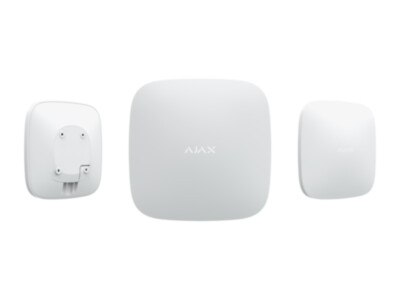

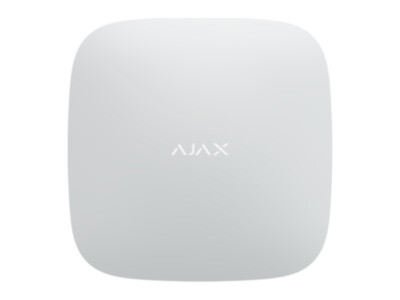

Ajax Hub 2 is a security system control panel that manages up to 100 wireless Ajax devices and delivers alarms both to the user's phone and to a monitoring station. The hub supports photo verification: MotionCam detectors send a series of photos on alarm, so the cause of the event is visible immediately.

The system can be divided into up to 9 security groups and 50 rooms and can have up to 50 users. Up to 32 automation scenarios link detectors and relays together — switching on lighting on alarm or cutting off the water supply, for example.

Communication runs in parallel over Ethernet and two SIM cards (2G/3G/4G), and the hub switches between the channels automatically. The internal lithium battery keeps the system running during a power cut. The hub talks to Ajax devices over Jeweller radio at a range of up to 2,000 m and delivers photos over the Wings protocol; all communication is encrypted and frequency-hopping.

Features

Up to 100 wireless Ajax devices, 50 users, 9 security groups and 50 rooms
Photo verification with MotionCam detectors (photo by alarm, scenario or on demand)
Up to 32 automation scenarios
Up to 25 IP cameras or recorders (Dahua, Hikvision, Safire, EZVIZ, Uniview)
Communication: Ethernet and two SIM cards (2G/3G/4G) with automatic switching
Jeweller radio up to 2,000 m, photos over the Wings protocol
Monitoring station protocols SIA (DC-09), SurGard (Contact ID), ADEMCO 685
Built-in backup battery keeps the system running during a power cut
Notifications by push, SMS and call

Technical data

Resolution	up to 640 × 480 pixels / Depends on the detector.
Communication protocol	Jeweller
Radio frequency band	866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / (UL) / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region.
Protection against spoofing	Yes
Ingress protection rating	IP20
Operating temperature range	from −10°C up to +40°C
Operating humidity	up to 75%
Dimensions (L × W × H)	163 × 163 × 36 mm
Weight	362 g
Warranty	24 months
