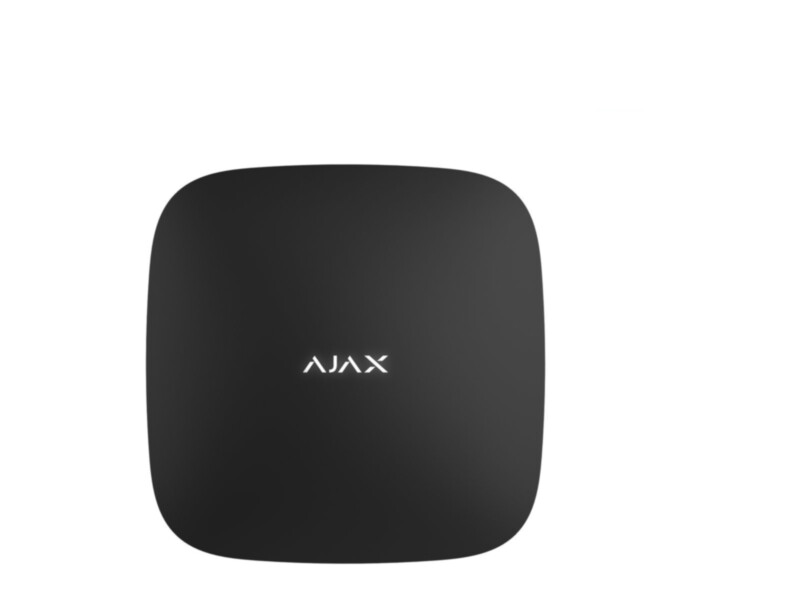

Ajax Hub black EU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€212.54 €264

Pre-order

SKU

38236.01.BL1

Product files

Datasheet

Product details

Product parameters
Manufacturer	Ajax
Length	163
Width	163
Height	36

Toote kirjeldus

Ajax Hub (2G) Jeweller is the control panel of an Ajax security system: it links wireless detectors, sirens and automation devices and passes alarms to users and the monitoring station. One hub takes up to 100 devices (including up to 10 sirens and 1 range extender), 50 users, 9 security groups and 50 rooms.

It communicates over two channels – Ethernet and a 2G SIM card – that work in parallel and switch over instantly. Detectors talk to the hub over encrypted Jeweller radio at up to 2,000 m. The hub sends push notifications, SMS and calls and supports the SIA DC-09 and Contact ID monitoring protocols. The built-in battery gives up to 15 hours of operation during a power cut. Hub (2G) does not support MotionCam photo detectors or temperature, humidity and CO₂ scenarios.

Key features

Up to 100 devices, 50 users, 9 security groups
Ethernet + 2G (micro-SIM), parallel channels
Jeweller radio up to 2,000 m
Monitoring protocols SIA DC-09, Contact ID
Backup battery up to 15 h
Alternative power via 12V PSU (sold separately)

Technical data

Type	security control panel
Devices	up to 100 (incl. 10 sirens, 1 range extender)
Users	up to 50
Communication channels	Ethernet (100 Mbit/s), 2G GSM/GPRS (micro-SIM)
Radio communication	Jeweller, up to 2,000 m in open space
Protocols	SIA DC-09, SurGard (Contact ID), ADEMCO 685
Power supply	110–240 V~, 50/60 Hz; backup Li-ion 2 Ah (up to 15 h)
Colour	black
Protection rating	IP20
Operating temperature	-10 to 40 °C
Operating humidity	up to 75%
Dimensions	163 × 163 × 36 mm
Weight	350 g
Warranty	24 months
