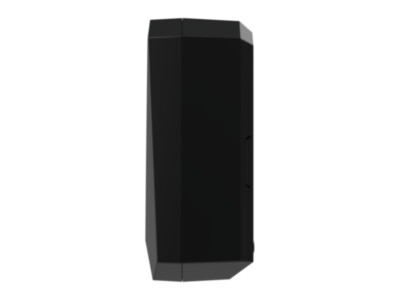

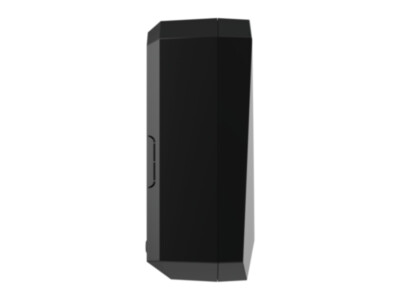

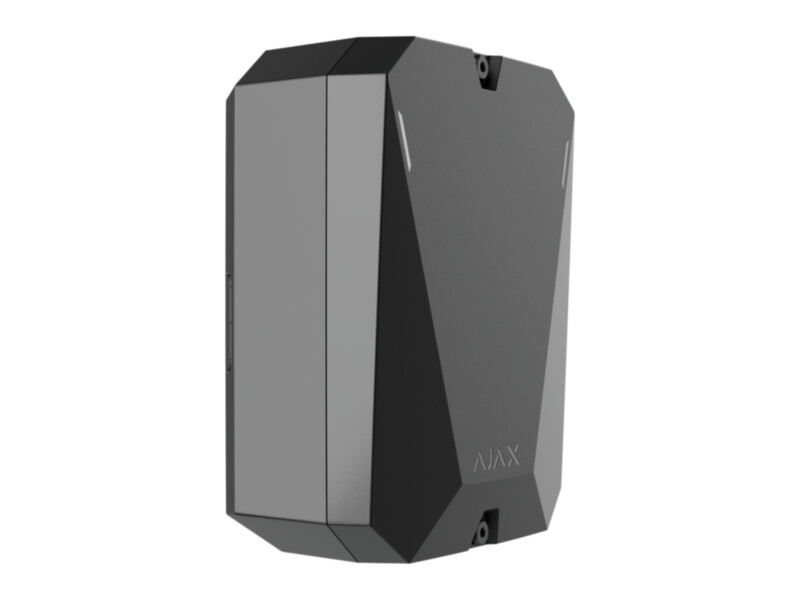

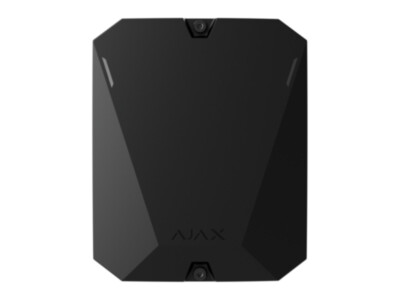

Ajax Hub BP black

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€388.26 €481

Pre-order

SKU

149623.263.BL1

Product files

Datasheet

Product details

Product parameters
Manufacturer	Ajax
Length	196
Width	238
Height	100

Toote kirjeldus

Ajax Hub BP Jeweller is an Ajax control panel for sites without a permanent mains supply – construction sites, summer houses, warehouses, agricultural and technical facilities. It runs on an external power source or battery (4.2–16 V, up to 2 A) or on an internal battery fitted in the enclosure; batteries are sold separately. In battery saving mode, for example, the 95 Ah internal battery lasts up to 23 months.

It communicates with the monitoring station and users through two micro-SIM cards on 2G/3G/4G. The hub takes up to 100 devices, including up to 5 range extenders, and 50 users; up to 32 automation scenarios and photo verification with MotionCam detectors are supported. External antenna connectors (Jeweller, Wings, LTE) improve communication in difficult locations. The tamper switch reports opening of the lid and removal of the enclosure.

Key features

Battery-powered control panel for sites without mains
2 × micro-SIM, 2G/3G/4G
Up to 100 devices, 5 range extenders, 50 users
Photo verification with MotionCam detectors
External antenna connectors (Jeweller, Wings, LTE)
Tamper switch, IP40

Technical data

Type	battery-powered control panel
Devices	up to 100 (incl. 5 range extenders)
Users	up to 50
Communication channels	2 × micro-SIM: 2G, 3G, 4G (LTE)
Radio communication	Jeweller, up to 2,000 m in open space
Power supply	external or internal battery / power source 4.2–16 V DC, up to 2 A (sold separately)
Protocols	SIA DC-09 (SIA-DCS), SurGard (Contact ID), ADEMCO 685
Colour	black
Protection rating	IP40
Operating temperature	-10 to 40 °C
Operating humidity	up to 75%
Dimensions	196 × 238 × 100 mm
Weight	1.01 kg
Warranty	24 months
