Ajax Keypad Plus (8EU) black

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€157.44 €195

Pre-order

SKU

38252.83.BL1

Product files

Datasheet

Product details

Product parameters
Length	165
Width	113
Height	20

Toote kirjeldus

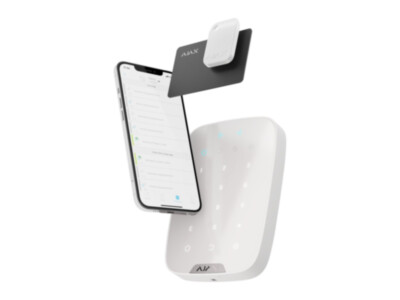

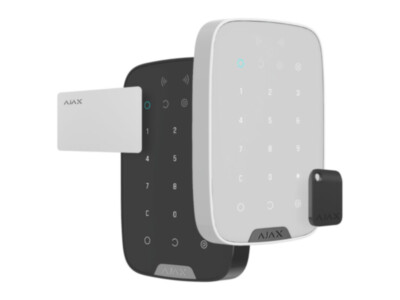

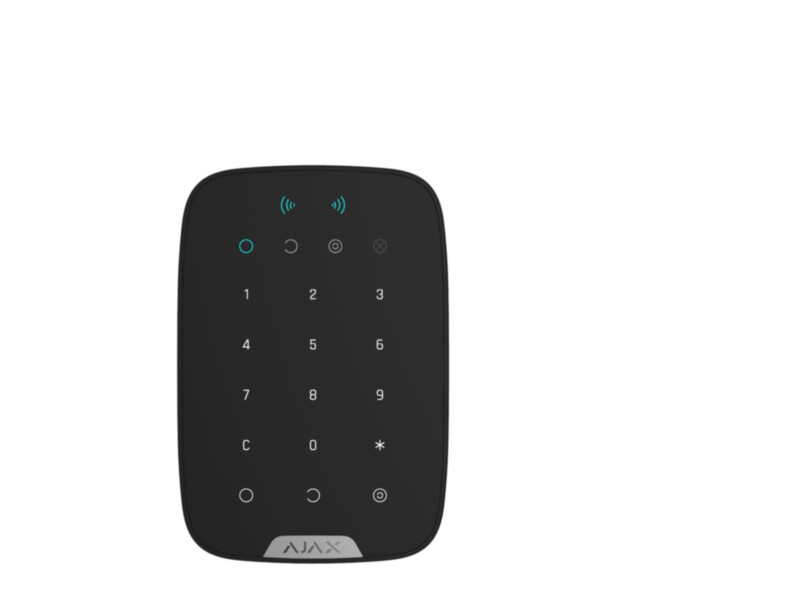

Ajax KeyPad Plus Jeweller is a wireless touch keypad that recognises a personal Pass card or Tag key fob as well as a numeric code. The credentials use DESFire® EV1/EV2 technology (ISO 14443) with 128-bit encryption, which cannot be cloned with an ordinary copier.

The keypad supports up to 200 personal codes, up to 200 duress codes for a silent alarm and up to 99 codes for people who are not registered in the system. A separate function button raises an alarm or arms the system fully with one press.

LED indication shows the security mode, detector malfunctions and loss of communication with the hub. The keypad locks against code guessing, device authentication protects against spoofing, and the Jeweller radio link is encrypted and frequency-hopping. Tamper protection reports opening of the enclosure or removal from the wall.

Features

Control by code, Pass card or Tag key fob
DESFire® EV1/EV2 credentials with 128-bit encryption
Up to 200 personal codes and up to 200 duress codes
Up to 99 codes for unregistered users
Function button: alarm or full arming with one press
LED indication of the security mode and malfunctions
Locks on code-guessing attempts
Encrypted Jeweller radio and tamper protection

Technical data

Communication protocol	Jeweller
Radio frequency band	866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / * / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region. / * Certified according to UL/ULC standards.
Radio communication encryption	Yes
Battery life	up to 3.5 years
Tamper alarm	Yes
Protection against spoofing	Yes
Operating temperature range	from −10 °C up to +40 °C
Operating humidity	up to 75%
Dimensions (L × W × H)	165 × 113 × 20 mm
Weight	267 g
Warranty	24 months
