Ajax ManualCallPoint (Red)

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€98.40 €122

In stock 24

SKU

60815.171.NC1

Product files

Datasheet

Product details

Product parameters
Length	102
Width	104
Height	39

Toote kirjeldus

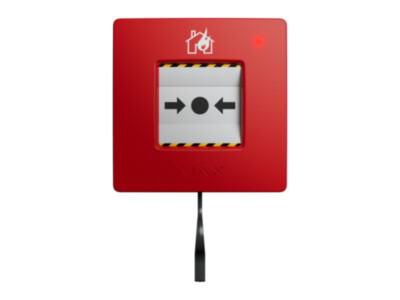

Ajax ManualCallPoint Jeweller is a wireless manual call point that lets a person raise a fire alarm. Pressing the central frangible element pushes the button inwards and triggers the alarm — the element is resettable, so no glass needs replacing and the call point can simply be reset after a test.

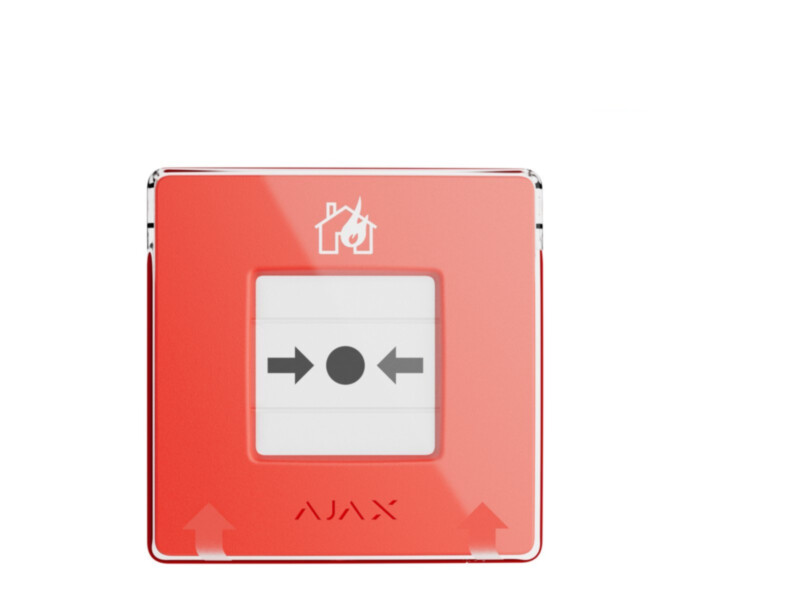

A transparent lid prevents accidental pressing: the lid must be lifted first. An LED indicator shows whether it is a fire alarm or a fault, and tamper protection reports removal of the enclosure.

The operating mode can be chosen: fire alarm, auxiliary alarm, panic button, gas leak, water leak, malfunction alert or an automation scenario trigger. A press also switches on the sounders of the system's fire detectors, and a critical alert can reach users even when the phone sound is muted. Transmission of the alarm to the monitoring station can be disabled if needed.

Features

Resettable frangible element — no glass to replace
Transparent lid against accidental presses
Modes: fire, panic, gas, water leak, malfunction, scenario
A press switches on the fire detectors' sounders
Critical alert even when the phone is muted
LED shows alarms and faults
Tamper protection and encrypted Jeweller communication

Technical data

Communication protocol	Jeweller
Radio frequency band	866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region.
Radio communication range	up to 1.700 m
Tamper alarm	Yes
Protection against spoofing	Yes
Operating temperature range	from / 0 °C up to +50 °C
Operating humidity	up to 80%
Dimensions (L × W × H)	102 × 104 × 39 mm
Weight	214 g
Warranty	24 months
