Ajax MotionCam Outdoor HighMount (PhOD) white

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€502.80 €623

In stock 7

SKU

99164.282.WH1

Product files

Datasheet

Product details

Product parameters
Manufacturer	Ajax

Toote kirjeldus

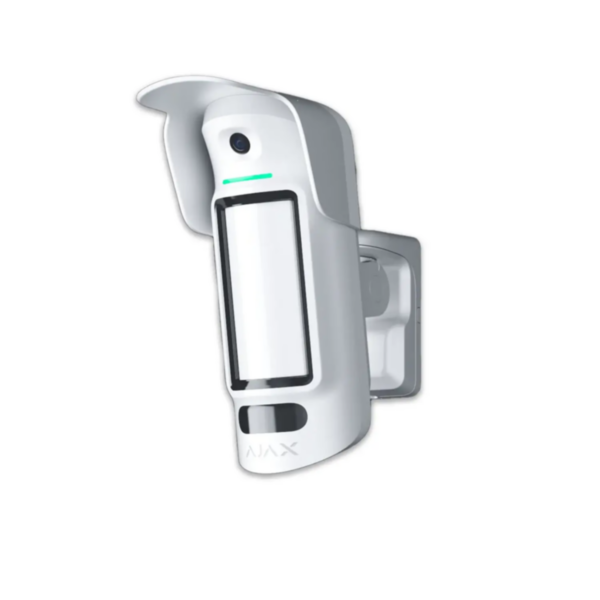

Ajax MotionCam Outdoor HighMount (PhOD) Jeweller is a wireless outdoor motion detector mounted at 2–4 m, out of an intruder's reach. Two IR sensors and a 24 GHz microwave sensor detect motion up to 15 m in a 90° sector; the SmartDetect algorithm and temperature compensation reduce false alarms.

The built-in camera takes photos on alarm and (PhOD) also on demand, by scenario, by schedule and on a change of security mode – the situation can be checked before reacting. The camera has IR illumination and HDR, with photos up to 640 × 480. A magnetometer detects tilting or moving the detector, anti-masking detects a blocked view and the tamper switch reports removal. Power from 6 × CR123A (up to 3 years) or an external 12–24 V supply; IP55.

Key features

Mounting height 2–4 m
2 IR sensors + 24 GHz microwave, up to 15 m, 90°
Photos on alarm, on demand, by scenario and schedule
IR illumination and HDR, up to 640 × 480
Magnetometer, anti-masking, tamper switch
6 × CR123A up to 3 years or 12–24 V
IP55, −25 to +60 °C

Technical data

Type	outdoor motion detector with photo camera
Sensor	2 × IR + 24 GHz microwave
Detection range	up to 15 m (mounting height 2–4 m)
Field of view	horizontal 90°
Photo	640 × 480 / 320 × 240, IR illumination, HDR
Radio communication	Jeweller, up to 1,700 m in open space
Power supply	6 × CR123A (up to 3 years) or 12–24 V DC
Tamper switch	yes, + magnetometer and anti-masking
Colour	white
Protection rating	IP55
Operating temperature	-25 to 60 °C
Operating humidity	up to 95%
Dimensions	234 × 98 × 230 mm (with bracket)
Weight	1010 g (with bracket)
Warranty	24 months
