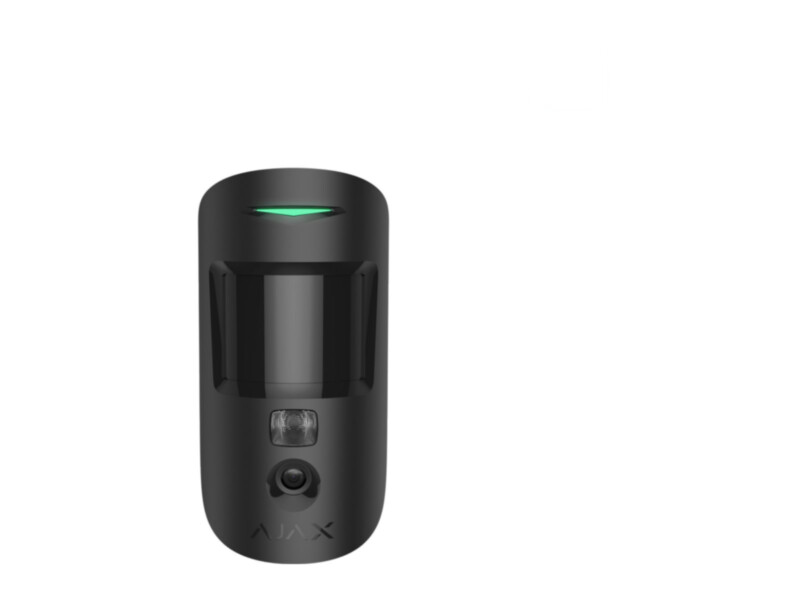

Ajax MotionCam (PhOD) Jeweller (8EU) black

€198.37 €246
Pre-order
SKU
39289.120.BL1
Product files
Product details
Product parameters
Length 135
Width 70
Height 60
Toote kirjeldus

Ajax MotionCam (PhOD) Jeweller is a wireless motion detector with a built-in camera. When the detector is armed and senses movement, the camera takes a series of photos and sends them to the app and to the monitoring station. It is immediately clear whether this is an intrusion or a pet left indoors, which avoids needless call-outs.

A PIR sensor detects movement at up to 12 m within an 88.5° horizontal field of view, with three sensitivity levels. The SmartDetect algorithm prevents false alarms, pet immunity allows animals of up to 20 kg indoors, and temperature compensation keeps detection accurate.

Photo resolution is selectable (up to 640 × 480 px) and the camera uses infrared illumination in the dark. Photos travel over the separate Wings protocol and alarms over Jeweller — all communication is encrypted. The SmartBracket mounting panel makes installation tool-free and the tamper reports removal.

PhOD stands for Photo on Demand: a user or a monitoring operator can request a photo even without an alarm — to check that an office is empty, for example. A photo can also be tied to an automation scenario, so the picture is taken on a given event or at a given time.

Features

  • Built-in camera: a series of photos on alarm
  • Photo on Demand and photo by scenario
  • Photo resolution up to 640 × 480 px, IR illumination in the dark
  • Motion detection up to 12 m, 88.5° field of view
  • Three sensitivity levels and the SmartDetect algorithm
  • Pet immunity for animals up to 20 kg and 50 cm tall
  • Temperature compensation for accurate detection
  • Photos over Wings, alarms over Jeweller
  • Tool-free installation with the SmartBracket panel

Technical data

Resolution640 × 480 px / 320 × 240 px (by default) / 160 × 120 px / Adjusted by PRO or user with admin rights in the Ajax app.
Sensing element1 PIR sensor
Motion detection rangeup to 12 m
Communication protocolJeweller
Radio frequency band866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / ¹ / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region. / ¹ Certified according to UL/ULC standards.
Power supply2 × CR123A
Protection against spoofingYes
Ingress protection ratingIP50
Operating temperature rangefrom / -10 °C up to +40 °C
Operating humidityup to 75%
Dimensions (L × W × H)135 × 70 × 60 mm
Weight170 g
Warranty24 months
