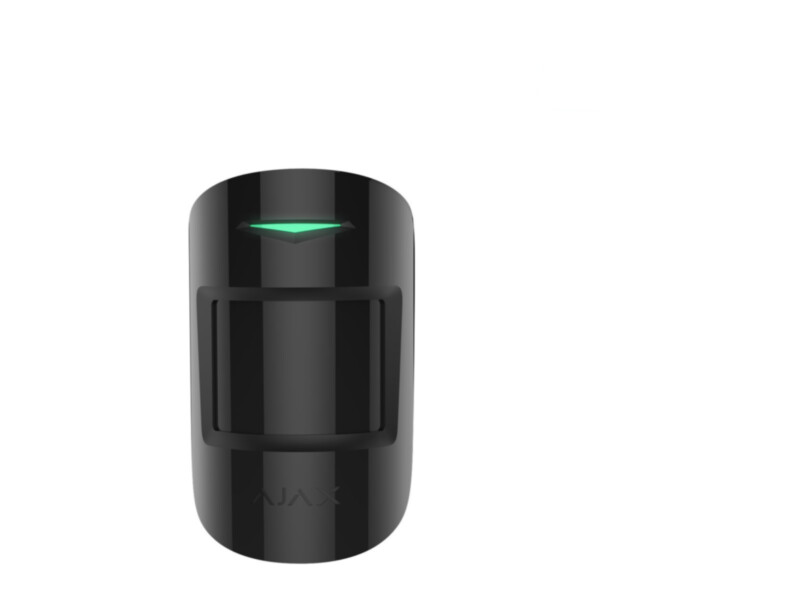

Ajax MotionProtect Plus black EU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€110.21 €137

Pre-order

SKU

38199.02.BL1

Product files

Datasheet

Product details

Product parameters
Length	110
Width	65
Height	50

Toote kirjeldus

Ajax MotionProtect Plus Jeweller is a wireless motion detector with two sensors: an infrared (PIR) sensor and a K-band microwave sensor. An alarm is raised only when both sensors detect movement, so a radiator, an air conditioner, a ray of sunlight or another heat source cannot cause a false alarm.

This detector suits rooms where an ordinary motion detector gets it wrong: glass-walled offices, warehouses, places near heating equipment or rooms where the temperature changes quickly. The detection range is up to 12 m with an 88.5° horizontal field of view, and sensitivity has three levels.

Pet immunity allows animals of up to 20 kg and 50 cm in height, and temperature compensation keeps detection accurate in cold and heat. The SmartBracket mounting panel makes installation tool-free, and tamper protection reports opening or removal of the enclosure.

Features

Two sensors: PIR and a K-band microwave sensor
Alarm only when both sensors detect movement
Detection range up to 12 m, 88.5° field of view
Three sensitivity levels, set from the app
Pet immunity for animals up to 20 kg and 50 cm tall
Temperature compensation and the SmartDetect algorithm
Tool-free installation with the SmartBracket panel
Tamper protection and device authentication

Technical data

Sensing element	PIR sensor / microwave sensor / K-band microwave sensor to prevent false alarms caused by thermal interference. / Operation frequency: 24 GHz.
Communication protocol	Jeweller
Radio frequency band	866.0–866.5 MHz / 868.0–868.6 MHz / 868.7–869.2 MHz / 905.0–926.5 MHz / * / 915.85–926.5 MHz / 921.0–922.0 MHz / Depends on the sales region. / * Certified according to UL/ULC standards.
Radio communication range	up to 1200 m
Radio communication encryption	Yes
Power supply	1 × CR123A
Tamper alarm	Yes
Protection against spoofing	Yes
Ingress protection rating	IP50
Operating temperature range	from -10 °C up to +40 °C
Operating humidity	up to 75%
Dimensions (L × W × H)	110 × 65 × 50 mm
Weight	96 g
Warranty	24 months
