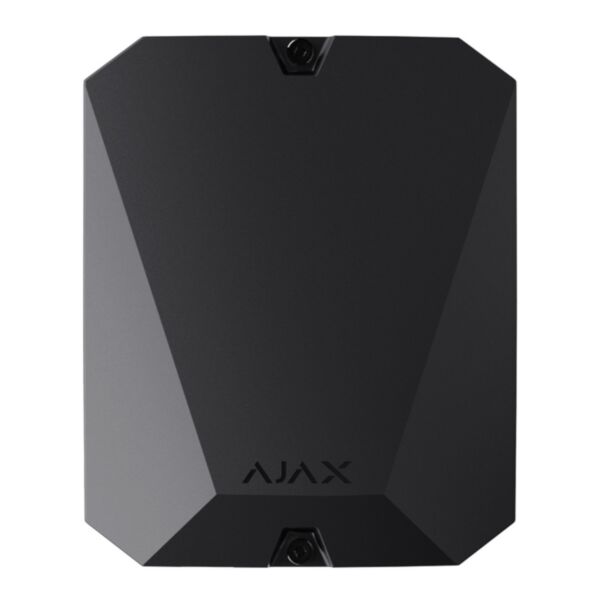

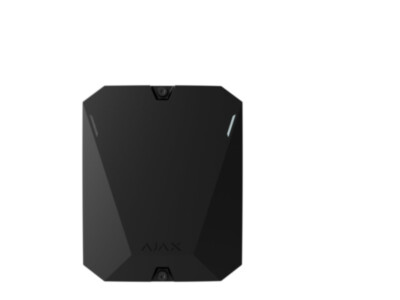

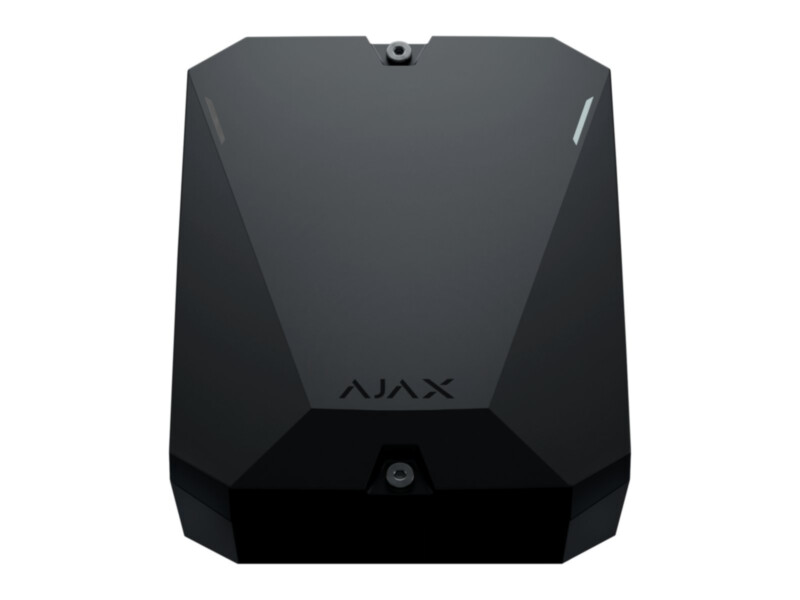

Ajax MultiTransmitter (8EU) black

Skip to the end of the images gallery

Skip to the beginning of the images gallery

€196.80 €244

Pre-order

SKU

38201.62.BL1

Product files

Datasheet

Product details

Product parameters
Length	192
Width	238
Height	100

Toote kirjeldus

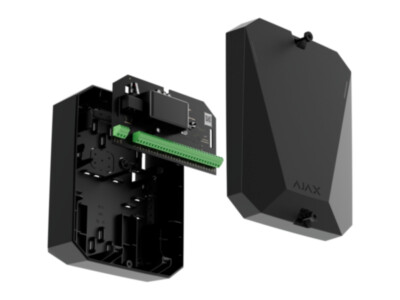

Ajax MultiTransmitter Jeweller is an integration module that connects an existing wired alarm system to Ajax. It has 18 wired zones for detectors with NC, NO or EOL connection — several devices can share one zone.

The old cabling and detectors can therefore stay in place while modern control is added: notifications on the phone, an event log and a monitoring station connection. The module distinguishes 15 event types (tamper, intrusion, fire, panic, medical assistance and others), so every zone appears in the app under the right name.

Cable runs of up to 400 m are supported, the operating mode is pulse or bistable, and the EOL resistance can be chosen between 1 and 7.5 kΩ. The module communicates with the hub over Jeweller radio at a range of up to 2,000 m, and two tampers report opening of the enclosure or its removal from the wall.

Features

18 wired zones, several detectors can share one zone
NC, NO and EOL connection types (resistance 1–7.5 kΩ)
15 event types: tamper, intrusion, fire, panic, medical assistance and more
Cable runs of up to 400 m
Pulse or bistable operating mode
Jeweller radio up to 2,000 m, encrypted and frequency-hopping
Two tampers against opening and removal

Technical data

Communication protocol	Jeweller
Tamper alarm	Yes
Protection against spoofing	Yes
Operating temperature range	from −10 °C up to +40 °C
Operating humidity	up to 75%
Dimensions (L × W × H)	192 × 238 × 100 mm
Weight	874 g
Warranty	24 months
